Rollon Easyslide
The Easyslide has variants like SN Series, SNK Series etc. Guide rails and sliders of the SN Series are made of cold-drawn bearing steel. The ball cage is made of steel and balls are made of hardened bearing steel. The raceways of the guide rails and sliders are induction hardened. These raceways are ground for the SNK Series. The SNK Series has recirculating ball bearings. These specifications make sure the long service life of the product.

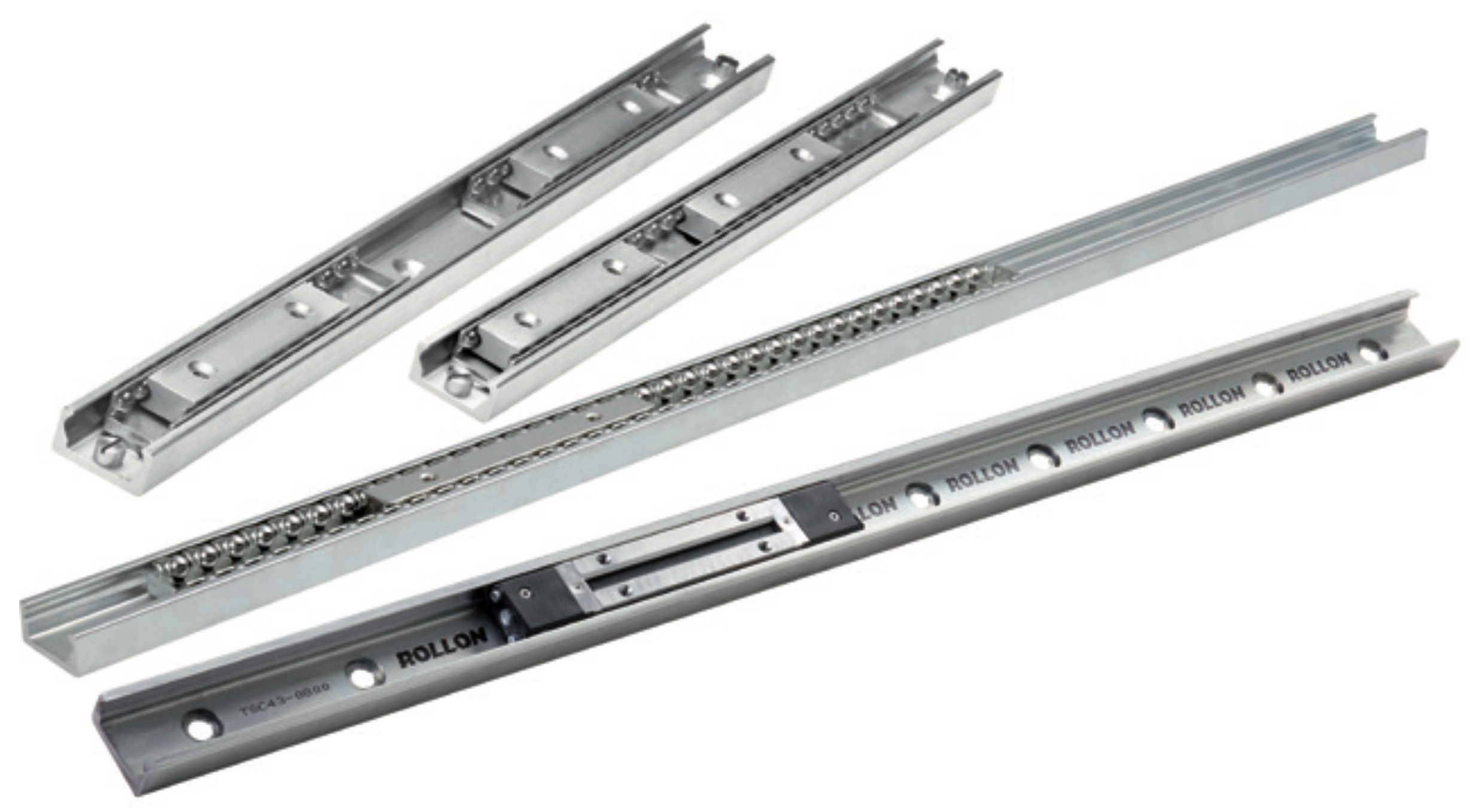

Variant Image

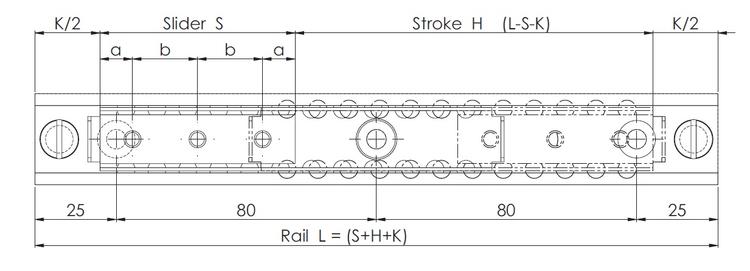

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Available Rail Lengths | 130 mm | 1970 mm |
| Radial Load Capacity | 1320 N | 122000 N |
| Axial Load Capacity | 924 N | 85400 N |
| Operating Speed | - | 1.5 m/s |
| Temperature Range | -20 °C | 170 °C |
Variant Applications
| Machines / Applications |
|---|
| Exterior and Interior Rail and Bus Doors, Seat Adjustments |
| X-ray Equipment, Medical Tables |
| Packaging Machines |
| Special Machines |
| Industries |
|---|
| Machine Tool Manufacturer |
| Material Handling Equipment Manufacturer |
| Automation Equipment Manufacturer |
Rollon Easyslide
The Easyslide has variants like SN Series, SNK Series etc. Guide rails and sliders of the SN Series are made of cold-drawn bearing steel. The ball cage is made of steel and balls are made of hardened bearing steel. The raceways of the guide rails and sliders are induction hardened. These raceways are ground for the SNK Series. The SNK Series has recirculating ball bearings. These specifications make sure the long service life of the product.
Variant Image

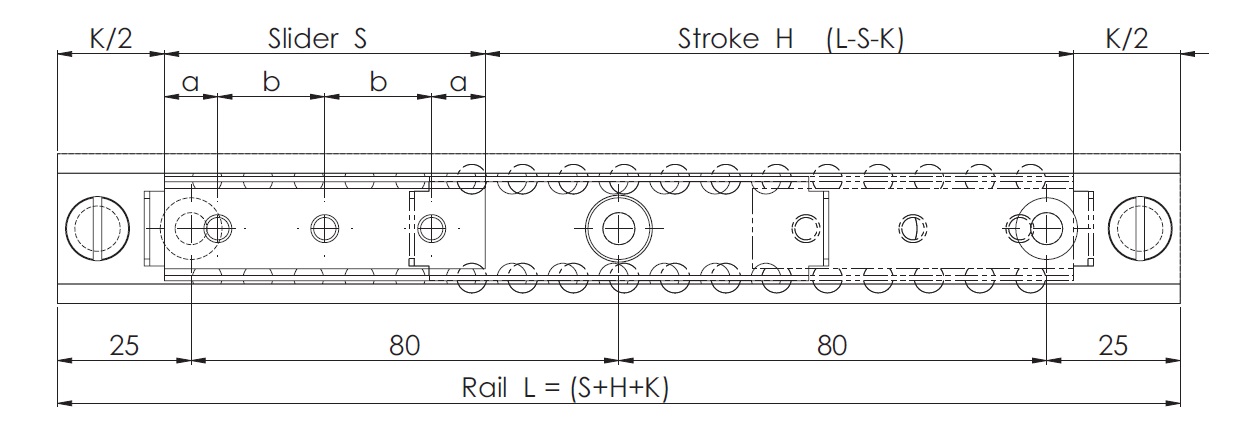

Variant Diagram
