Rollon O-Rail
O-Rail's roller linear system offers the maximum flexibility configuration due to the original shape of the guide with 3 raceways arranged at 90 ° to each other. Using a single guide, two, or more parallel guides, gives rise to several combinations capable of satisfying each specific need for linear motion and offering exceptional self-alignment capacity. O-Rail is constructed in high strength steel hardened with hardening treatments to further improve both performance and durability.

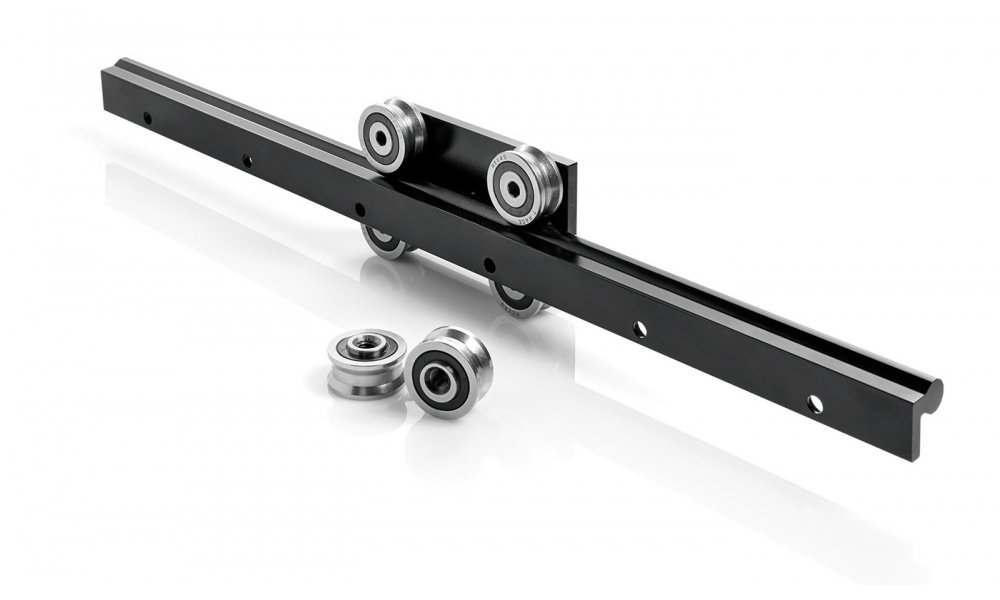

Variant Image

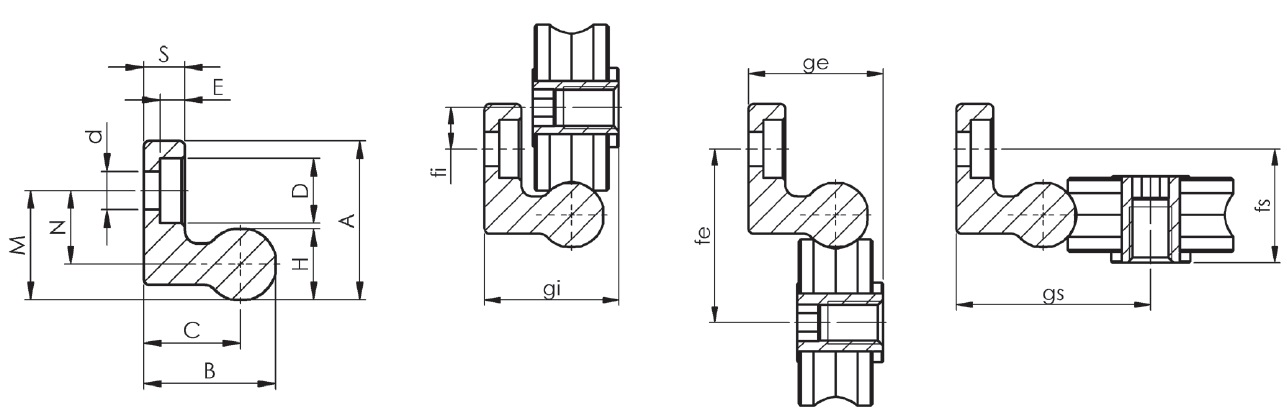

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Length of the Rail | 400 mm | 4000 mm |
| Radial Load Capacity | - | 4000 N |
| Axial Load Capacity | - | 1190 N |
| Temperature Range | -40 °C | 130 °C |
Variant Applications
| Machines / Applications |
|---|
| Overhead Transfers and Panels Handling |
| Feeding and Scavenging Systems |
| Palletizers |
| Industries |
|---|
| Gear & Gearbox Manufacturer |
| Cement Manufacturer |
| Material Handling Equipment Manufacturer |
| Auto Ancillary |
| Automobile Manufacturer |
