Rollon Prismatic Rail
The hardened raceways of Prismatic Rail lead to long life. It has optimal reliability in dirty environments. It is a self-aligning system with simple mounting and high dynamics.

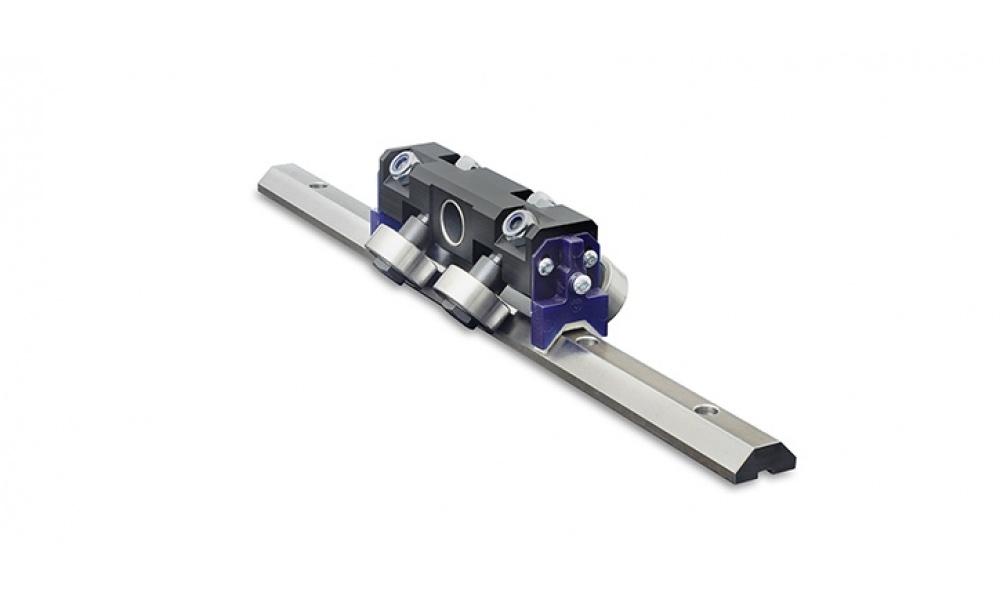

Variant Image

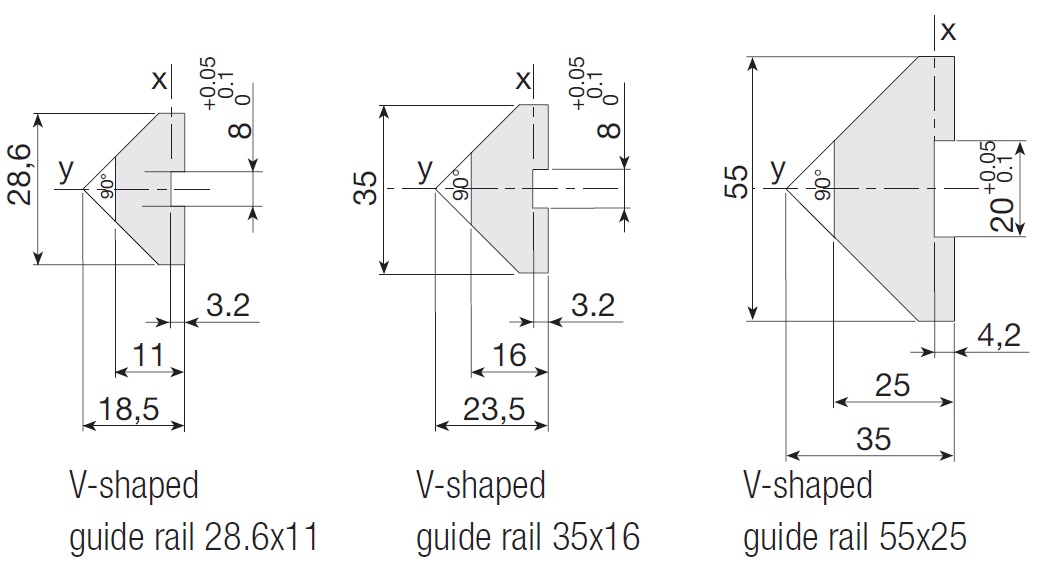

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Length of the Rail | - | 4100 mm |
| Radial Load Capacity | - | 15000 N |
| Axial Load Capacity | - | 15000 N |
| Operating Speed | - | 7 m/s |
| Acceleration | - | 20 m/s² |
| Temperature Range | -10 °C | 80 °C |
Variant Applications
| Machines / Applications |
|---|
| Packaging Machines |
| Robot and Handling Systems |
| Industries |
|---|
| Industrial Automation |
| Material Handling Equipment Manufacturer |
