Rollon Telerace
The Telerace Series is a stainless steel rail. It is ideal for continuous cycle applications. The variants are TLN, TQN, TLAX, etc.

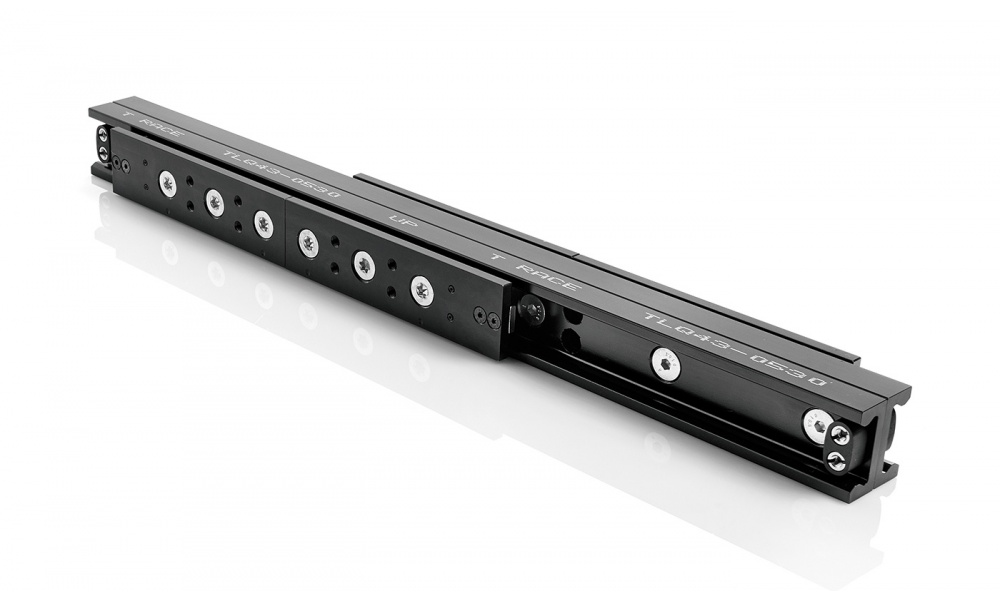

Variant Image

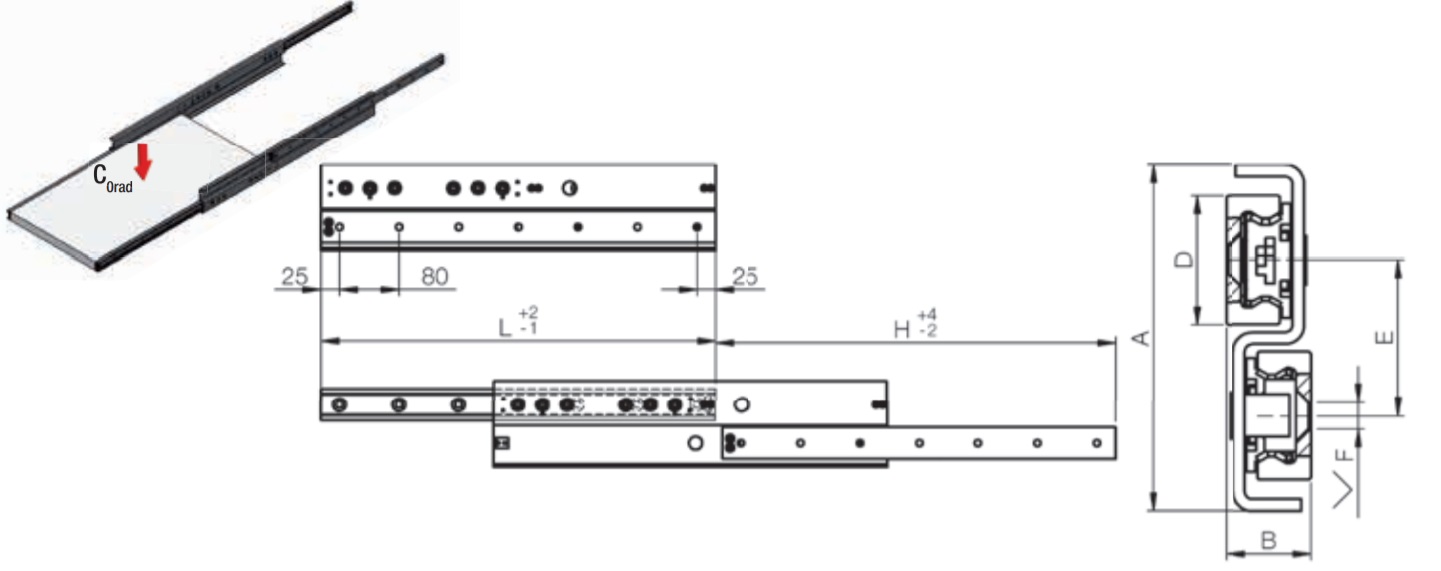

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Available Rail Lengths | 770 mm | 1970 mm |
| Available Stroke Length | 770 mm | 1980 mm |
| Radial Load Capacity | 946 N | 7672 N |
| Axial Load Capacity | 352 N | 1784 N |
| Temperature Range | -20 °C | 110 °C |
Variant Applications
| Machines / Applications |
|---|
| Platform Screen Doors |
| Battery Box Extraction |
| Industries |
|---|
| Automation Equipment Manufacturer |
| Packaging Equipment Manufacturer |
| Material Handling Equipment Manufacturer |
