Rollon Telescopic Rail
The Rollon Telescopic Rails are available with caged bearings. These come in eight series ASN, DE, DS, DSC, DBN, DMS, and DSE. These provide up to 150% extraction.

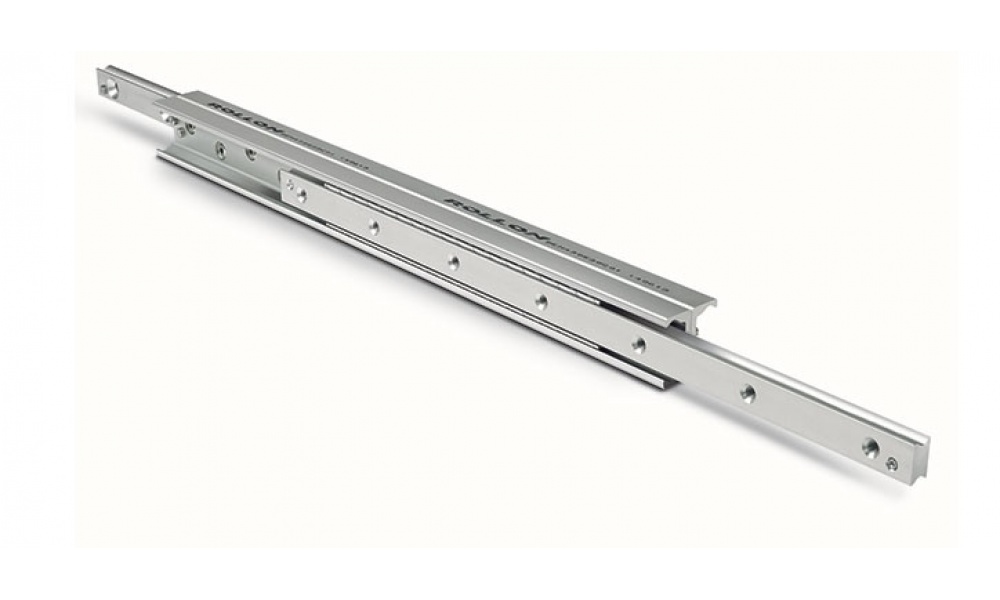

Variant Image

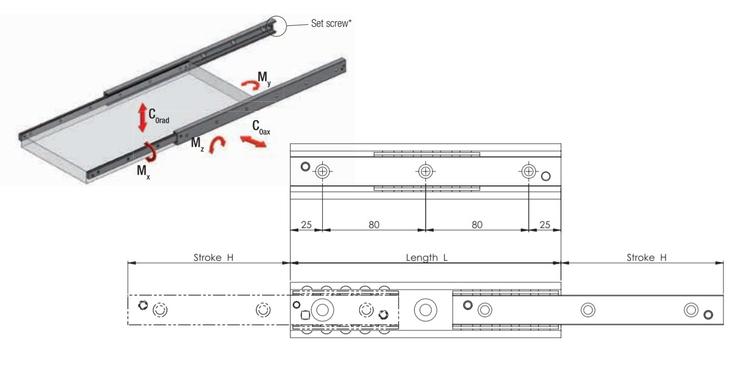

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Available Rail Lengths | 770 mm | 1970 mm |
| Available Stroke Length | 394 mm | 3039 mm |
| Radial Load Capacity | 562 N | 88494 N |
| Axial Load Capacity | 472 N | 61946 N |
| Operating Speed | - | 0.8 m/s |
| Temperature Range | -20 °C | 170 °C |
Variant Applications
| Machines / Applications |
|---|
| Platform Screen Doors |
| Battery Box Extraction |
| Industries |
|---|
| Automobile Manufacturer |
| Packaging Equipment Manufacturer |
| Material Handling Equipment Manufacturer |
Rollon Telescopic Rail
The Rollon Telescopic Rails are available with caged bearings. These come in eight series ASN, DE, DS, DSC, DBN, DMS, and DSE. These provide up to 150% extraction.
Variant Image

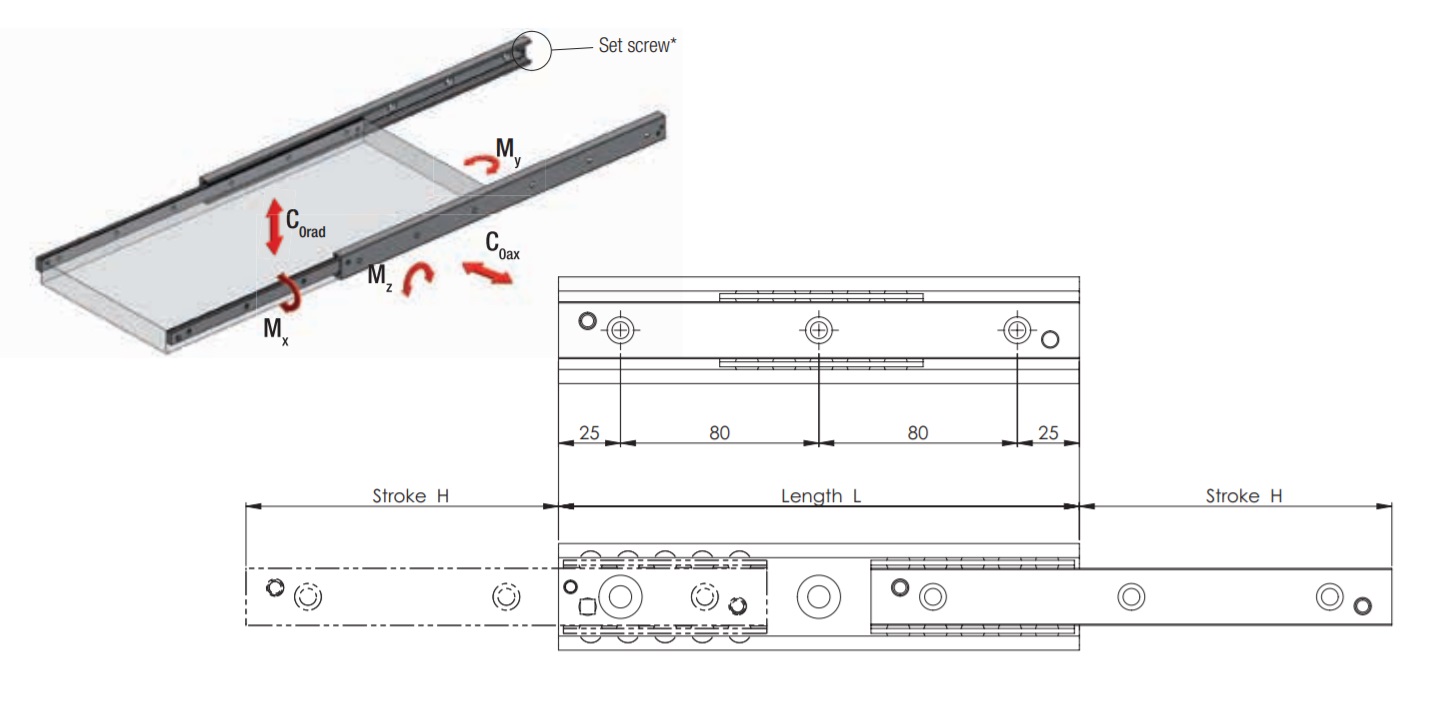

Variant Diagram
