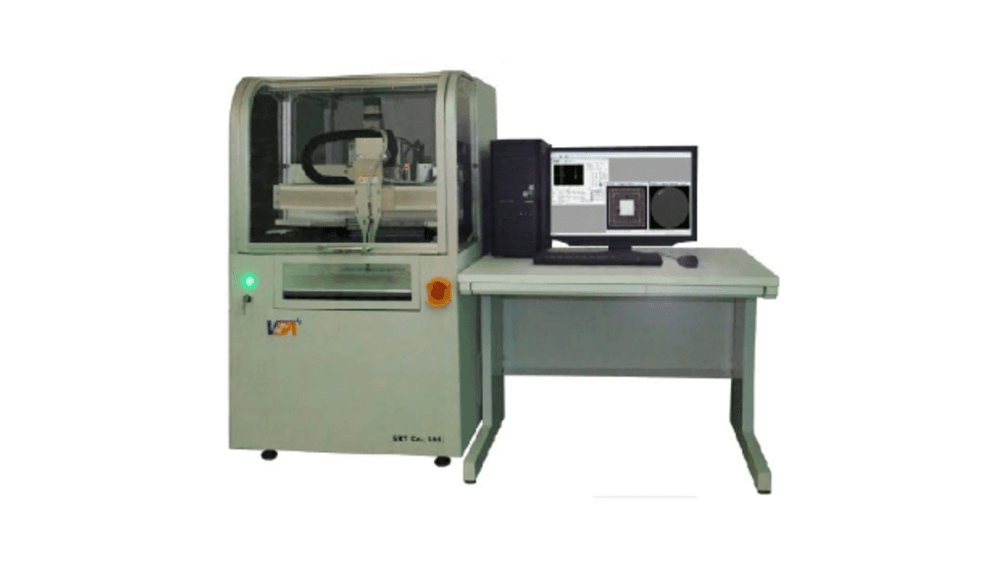

Ultrasound Imaging Device VSA M-350
This is an ultrasonic imaging device that uses Scanning Acoustic Tomography (SAT) to analyze Integrated Circuit (IC) failures. It is a compact, stable, and user-friendly machine. It has a standard calibration function that enables it to keep in focus any time reproduction of an image takes place, as well as an auto-calibration feature. It is easy to set parameters. It supports mass inspection with programmable scanning techniques for automatic flaw analysis and center adjustment. The defective IC chips are rejected/sorted by robotic arm. The high-resolution imaging allows flexible layouts for displaying inspection results.
Ultrasound Imaging Device VSA M-350
This is an ultrasonic imaging device that uses Scanning Acoustic Tomography (SAT) to analyze Integrated Circuit (IC) failures. It is a compact, stable, and user-friendly machine. It has a standard calibration function that enables it to keep in focus any time reproduction of an image takes place, as well as an auto-calibration feature. It is easy to set parameters. It supports mass inspection with programmable scanning techniques for automatic flaw analysis and center adjustment. The defective IC chips are rejected/sorted by robotic arm. The high-resolution imaging allows flexible layouts for displaying inspection results.
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Scan Range (XYZ in mm) | 350 X 320 X 80 | |
| Scan Speed (mm/s) | 1200 | |
| Measurement Pitch(mm) | 0.001 | |
| AC Power Supply | 100 V/200 V,15 A | |
| Supply Body Size (W X D X H in mm) | 780 X 900 X 1250 | |
| Quantity (Kg) | About 350 | |
| Safety Devices | Emergency Stop Button, Door Open/Close Detection Sensor | |
| Available Measurement Mode | C-Scan, Tray-scan, Through-scan, Index-scan, Grid-Scan, Full waveform scan | |
| Analysis Function | 1. Defect area measurement 2. Defect location measurement 3. Defect binary display 4. Waveform analysis 5. FFT video processing probe option |
Machines / Applications
| IC Chip Inspections |
| Capacitor Inspections |
| Matrix Tray Scan |
