Thomson High Load Ball Screw
Thomson high load ball screws offer dynamic load capacity up to 144 tons = 1440 Kn, with a preloaded nut option, high stiffness. It can replace roller screw at less than 50% price of the roller screw and same life! Dia range is from 40 mm to 160 mm with various lead options, made in Germany.

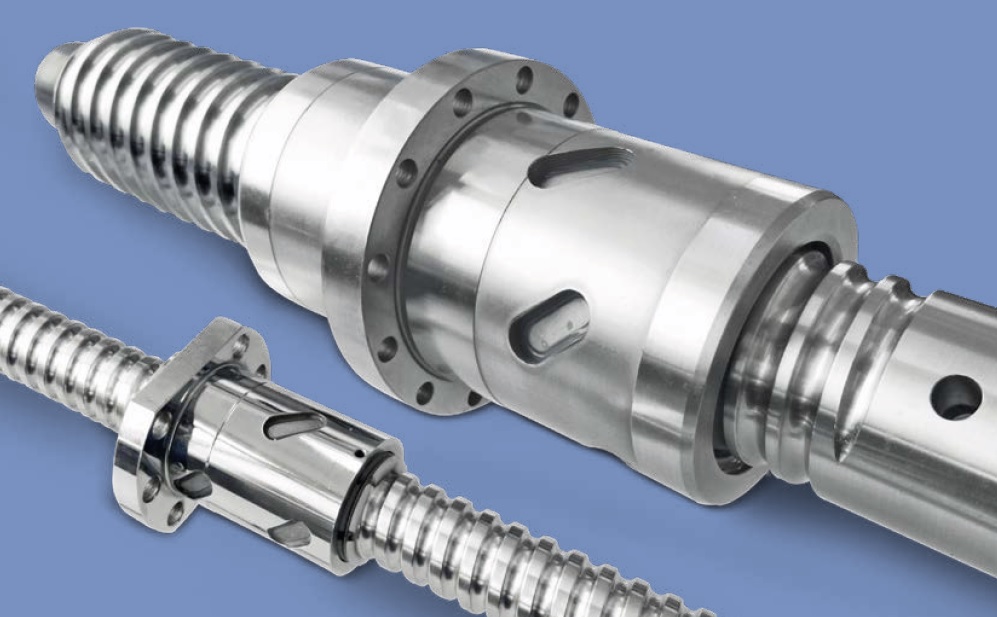

Variant Image

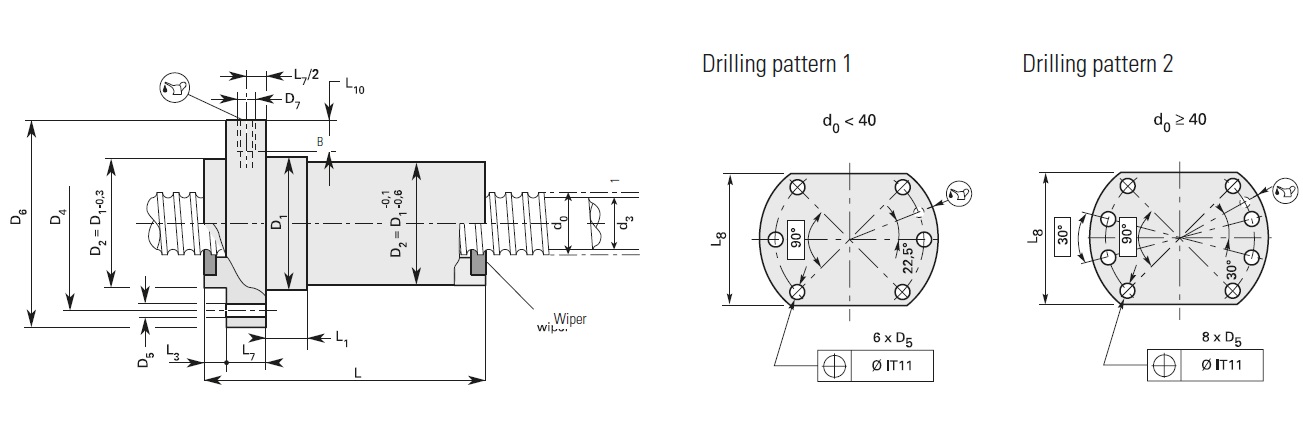

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Nominal Diameter | 40 MM | 160 MM |
| Lead | 12 MM | 30 MM |
| Dynamic Rated Load | 220 KN | 1440 KN |
| Static Rated Load | 434 KN | 5870.3 KN |
Variant Applications
| Machines / Applications |
|---|
| Large Fabrication Machines(mills,water jets, plasma cutters) |
| Injection Molding, Pressing and Metal Fabrication Machines |
| Metal Pressing and Forming (e.g. Rivet Presses, Servo Presses, Tube Bending, Metal Sheet Bending, Test Rigs, Straightening Machines) |
| Machine Tools |
| Lifting Devices |
| Large Valves |
| High-Load Actuators, Electromechanical Conversion |
| Industries |
|---|
| Metal Manufacturers |
| Aircraft Construction |
| Machine Manufacturing Industry |
Thomson High Load Ball Screw
Thomson high load ball screws offer dynamic load capacity up to 144 tons = 1440 Kn, with a preloaded nut option, high stiffness. It can replace roller screw at less than 50% price of the roller screw and same life! Dia range is from 40 mm to 160 mm with various lead options, made in Germany.
Variant Image

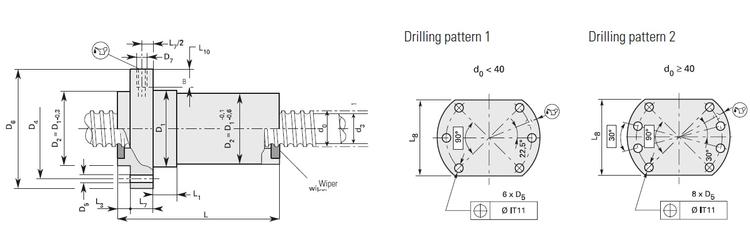

Variant Diagram
