Thomson KGF-N
Thomson cold rolled ball crews are manufactured by the cold rolling process. There is no ship removal here. Due to the typical rolling process, there is compressive stress at the surface resulting in longer life for ball screws with good quality and stable running. The ball nut is available with "round flange " design series KGF-N.

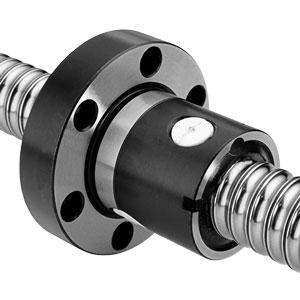

Variant Image

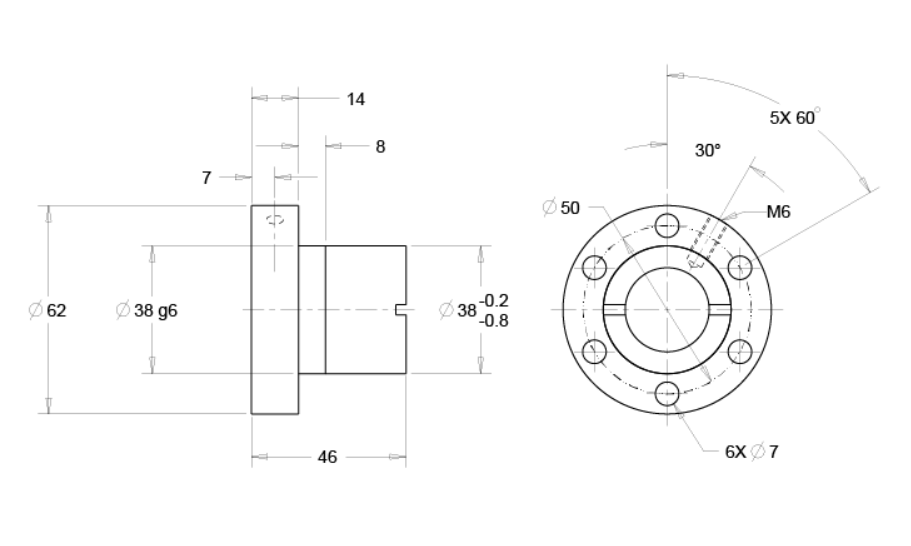

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Nominal Diameter | 16 MM | 80 MM |
| Lead | 5 MM | 50 MM |
| Dynamic Load | 9.3 KN | 86.25 KN |
| Static Load | 13.1 KN | 262.41 KN |
Variant Applications
| Machines / Applications |
|---|
| Flow make MAC300/500 CNC Waterjet cutting m/c |
| CNC Machines |
| Industries |
|---|
| Machine Tool Manufacturer |
| Aircraft Construction |
| Wood Working |
| Material Handling Equipment Manufacturer |
| Medical Equipment |
| Press Machine Industry |
| Paper Manufacturing |
