Thomson KOKON Recirculating Ball Screw
KOKON ball screw is a unique design from Thomson Germany for harsh environments and for long travel length. It is a "ready to fit" product with end supports, cover. The ball nut is a preload nut.

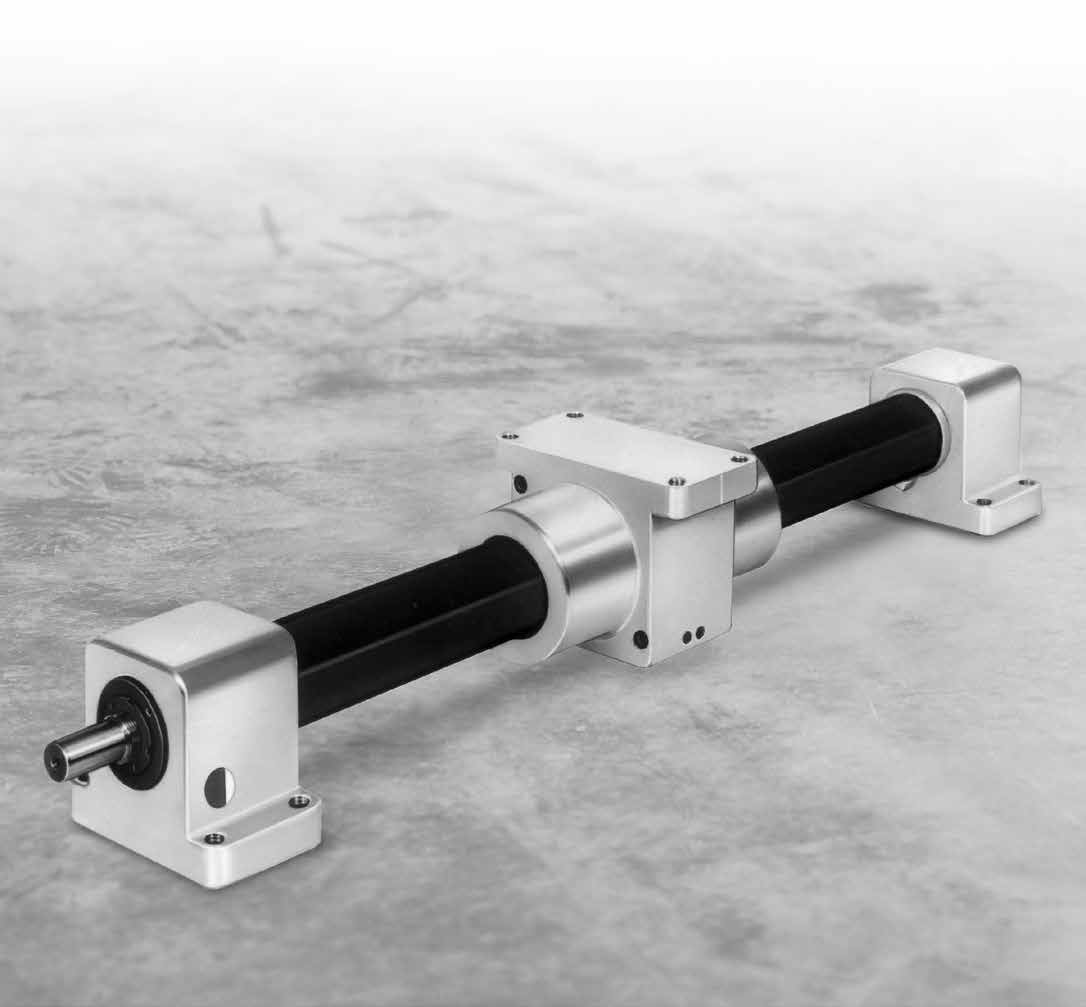

Variant Image

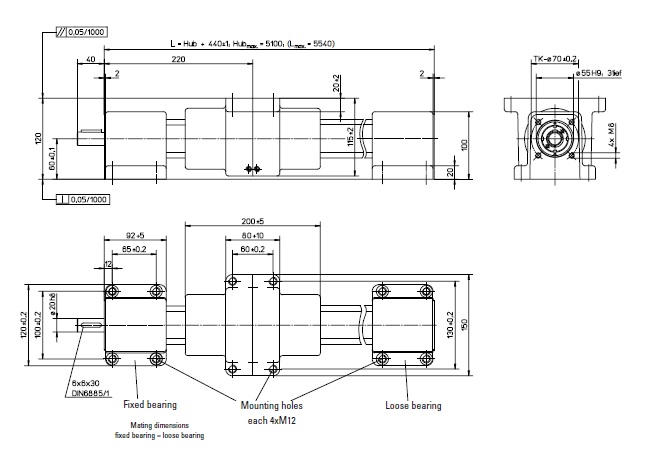

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Nominal diameter | 40 MM | 40 MM |
| Lead | 5 MM | 10 MM |
| Acceleration | - | 20 M/S2 |
| Speed | - | 3000 RPM |
| Axial Load Capacity | - | 46000 N |
| Travel Speed Max. | 250 MM/SEC | 500 MM/SEC |
Variant Applications
| Industries |
|---|
| Harsh and Dirty Environment application |
| ApplicatIon with Long Travel |
