Thomson Glide Screw(inch)
Glide screw is a combination of lead screw plus linear bearings in one compact package. It is best for medical / lab automation type applications.

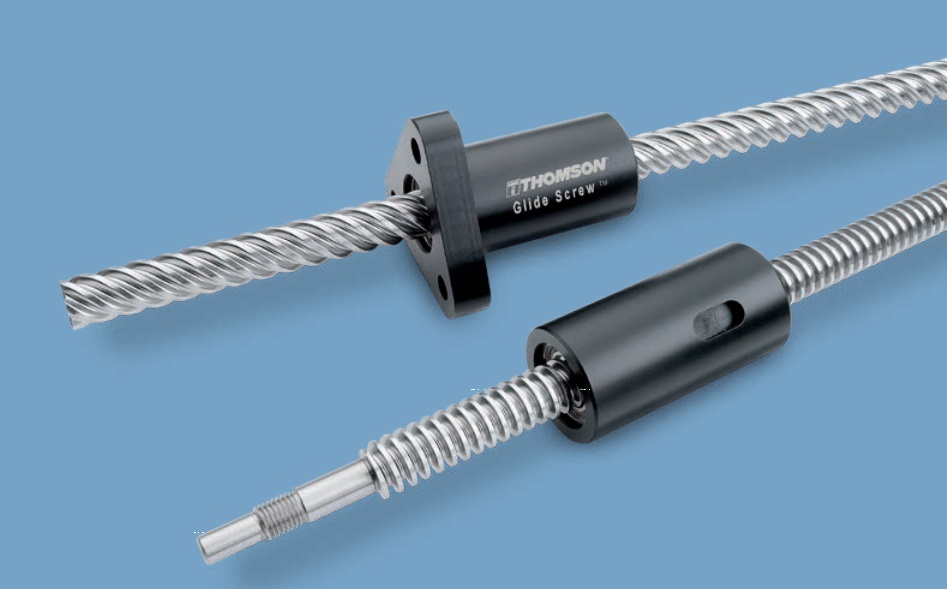

Variant Image

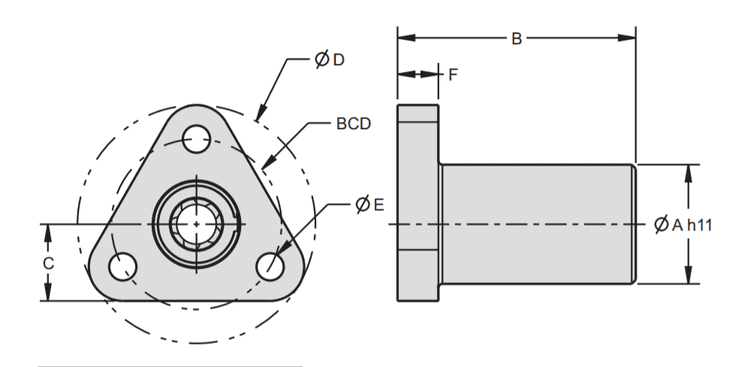

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Screw Diameter | 0.188 inch | 0.375 inch |
| Screw Lead | 0.050 inch | 1 inch |
| Efficiency Percentage | 36 | 83 |
| Maximum Axial Load | 30 lbs | 70 lbs |
| Maximum Screw Length | 6 inch | 18 inch |
| Maximum Moment Load | 20.5 in-lbs | 137.5 in-lbs |
Variant Applications
| Machines / Applications |
|---|
| Medical Equipment |
| Engraving Equipment |
| Semiconductor Manufacturing equipment |
| Laboratory Equipment |
| Industries |
|---|
| Medical Industry |
| Textile Industry |
| Pharmaceutical Industry |
| Semiconductor Industry |
Thomson Glide Screw(inch)
Glide screw is a combination of lead screw plus linear bearings in one compact package. It is best for medical / lab automation type applications.
Variant Image

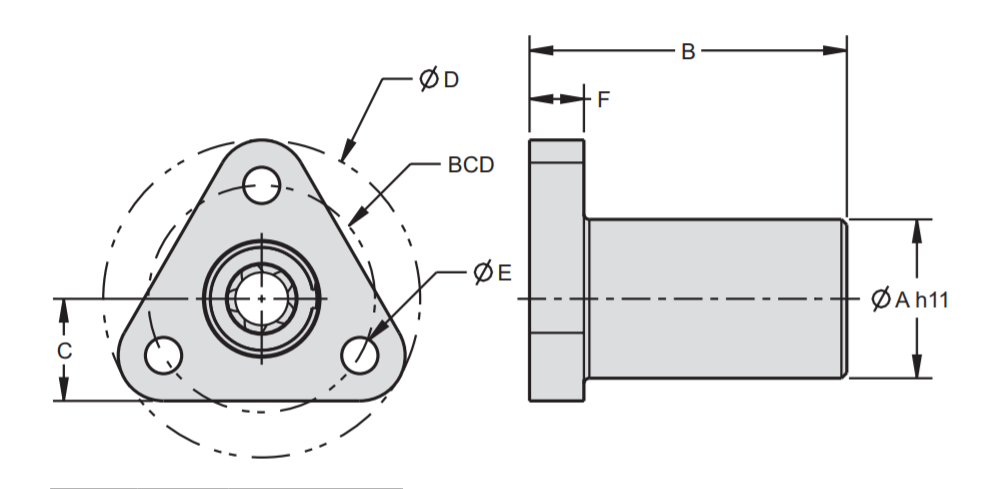

Variant Diagram
