Thomson Glide Screw(metric)
Glide screw is a combination of lead screw plus linear bearings in one compact package. It is best for medical / lab automation type applications.

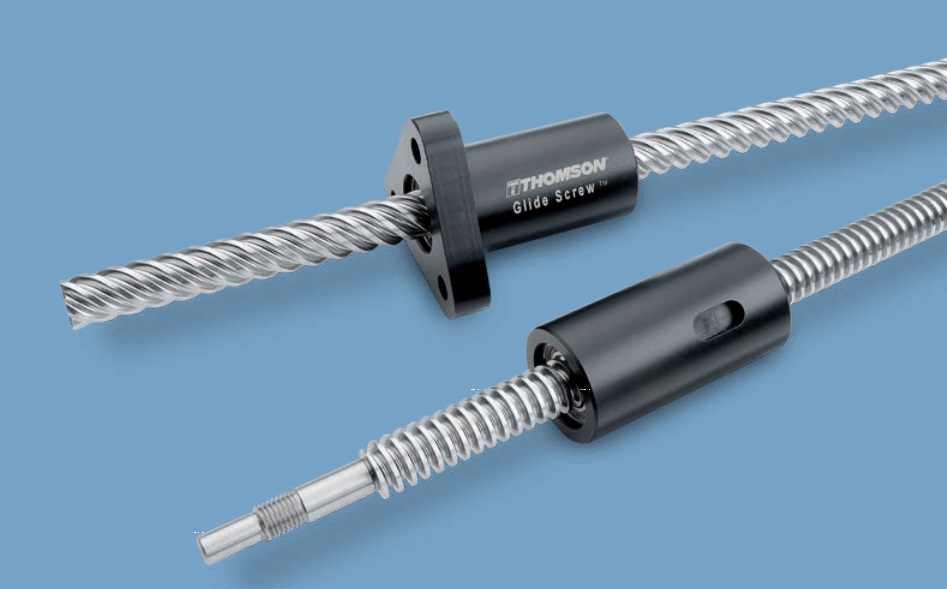

Variant Image
Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Screw Diameter | 4 MM | 10 MM |
| Screw Lead | 1 MM | 12 MM |
| Efficiency Percentage | 36 | 82 |
| Maximum Axial Load | 89 N | 311.4 N |
| Maximum Screw Length | 150 MM | 400 MM |
| Maximum Moment Load | 2.3 Nm | 15.5 Nm |
Variant Applications
| Industries |
|---|
| Medical Industry |
| Textile Industry |
| Pharmaceutical Industry |
| Semiconductor Industry |
