Thomson DMA Linear Actuator (ILA)
It is a lifting column with an LA5 actuator inside. Can take very high bending moments .1 ph x 230 V AC option, with all features of the electric cylinder is available

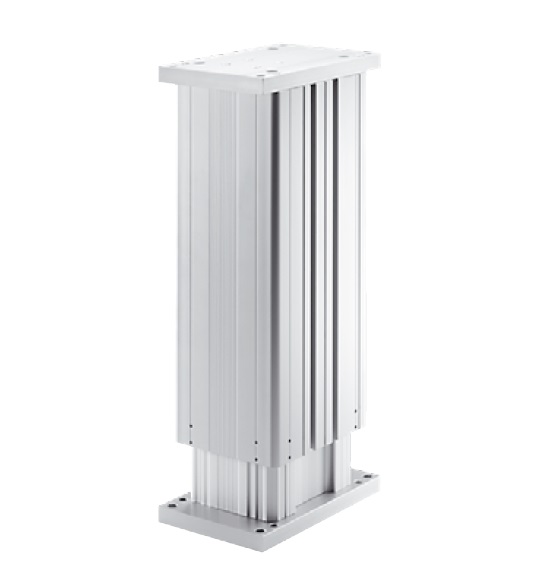

Variant Image

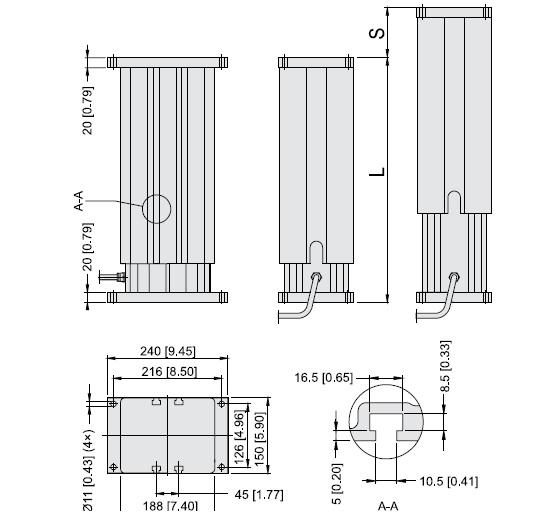

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Available Input Voltages | 12 Vdc | 24 Vdc |
| Dynamic Load | - | 6800 N |
| Static Load | - | 18000 N |
| Speed @ no Load/max. Load | - | 53/43 MM/S |
| Ordering Stroke Length | - | 600 MM |
| Operating Temperature Limits | -25 °C | 65 °C |
Variant Applications
| Machines / Applications |
|---|
| Lifting Applications |
| Industries |
|---|
| Material Handling Equipment Manufacturer |
| Packaging Equipment Manufacturer |
| Medical Equipment |
| Pneumatic Equipment |
| Office Equipment |
| Assembling Machine Industry |
