Thomson DMHD Linear Actuator (ILA)
It is a lifting column with an HD actuator inside. Can take very high bending moments. 24 v dc or 12 v dc option, with all features of electric cylinder, is available

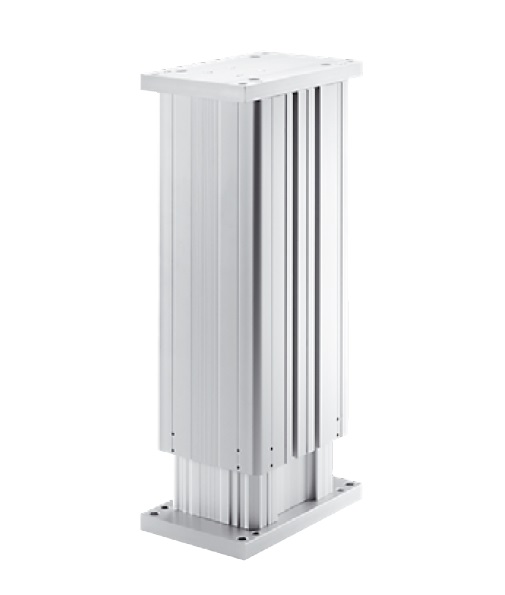

Variant Image

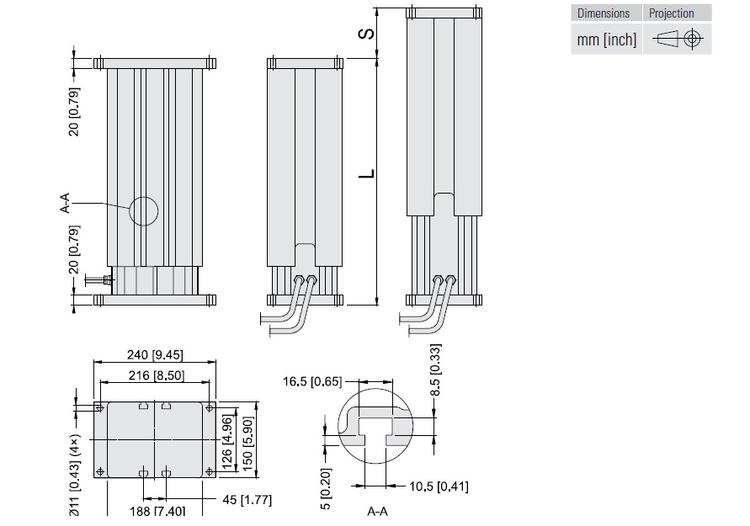

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Available Input Voltages | 12 Vdc | 24 Vdc |
| Dynamic Load | - | 16000 N |
| Static Load | - | 18000 N |
| Speed @ no Load/max. Load | - | 71/58 MM/S |
| Ordering stroke Length | - | 600 MM |
| Operating Temperature Limits | -40 °C | 85 °C |
Variant Applications
| Machines / Applications |
|---|
| Lifting Applications |
| Industries |
|---|
| Material Handling Equipment Manufacturer |
| Packaging Equipment Manufacturer |
| Medical Equipment |
| Pneumatic Equipment |
| Office Equipment |
| Assembling Machine Industry |
Thomson DMHD Linear Actuator (ILA)
It is a lifting column with an HD actuator inside. Can take very high bending moments. 24 v dc or 12 v dc option, with all features of electric cylinder, is available
Variant Image

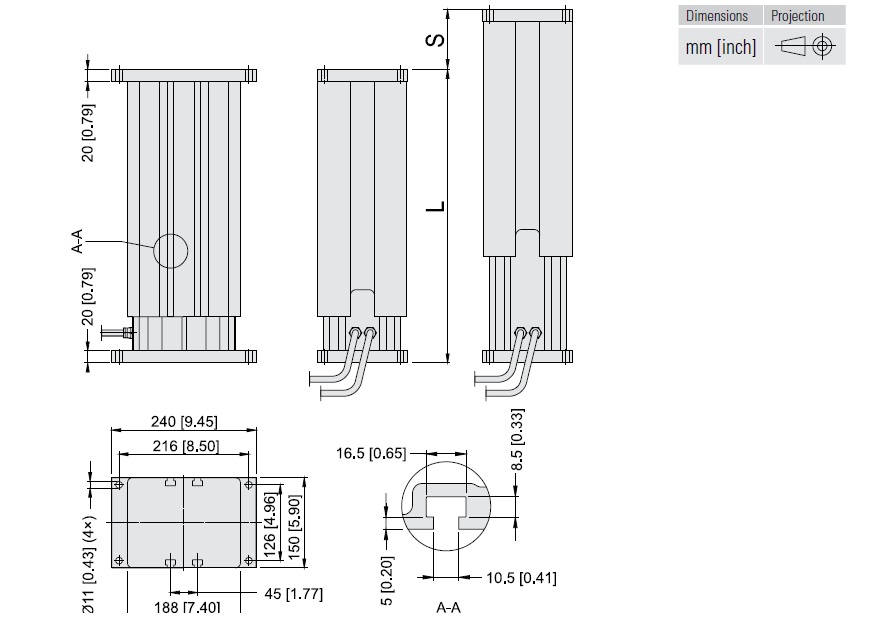

Variant Diagram
