Thomson Electrak® 1 SP Linear Actuator (ILA)
It is DC actuator with IP 65 protection,12 v dc/ 24 v dc . Acme screw drive is there. It is a maintenance-free electric cylinder, suitable for a 25% duty cycle. Max stroke is 8 inches= 200 mm. It has 10 K ohm POT feedback.

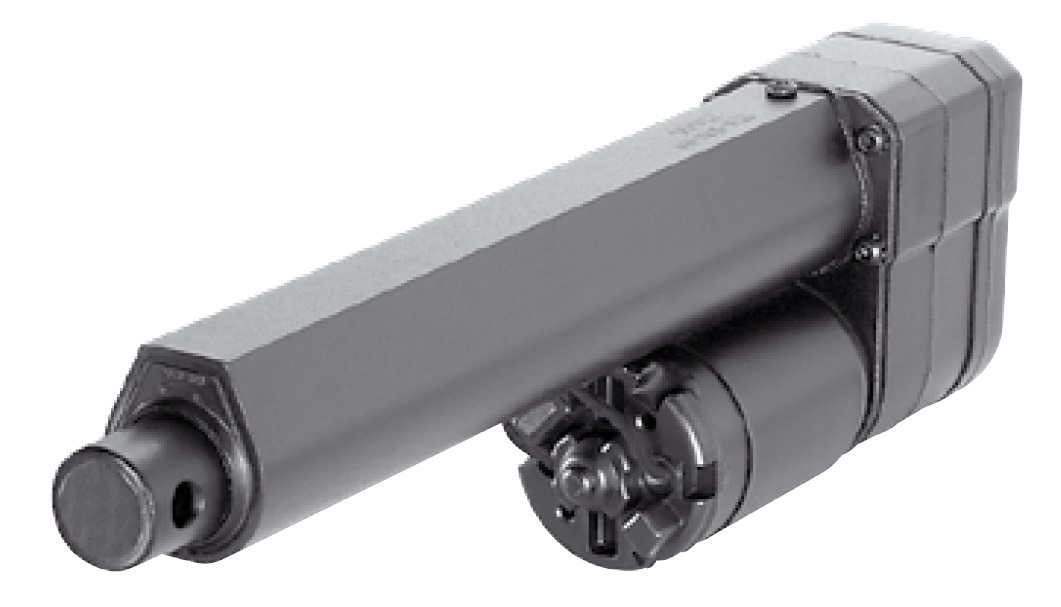

Variant Image

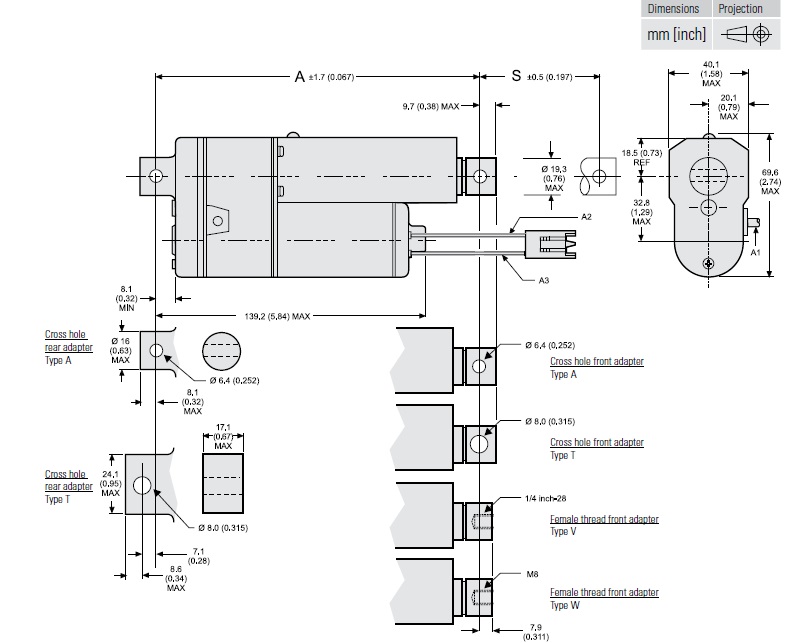

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Available Input Voltages | 12 Vdc | 24 Vdc |
| Dynamic Load | 110 N | 340 N |
| Static Load | - | 1300 N |
| Speed @ no Load/Max. load | - | 78/64 mm/s |
| Ordering Stroke Length | 1 Inch | 8 Inch |
| Operating Temperature Limits | -25 °C | 65 °C |
Variant Applications
| Machines / Applications |
|---|
| Special Purpose Machines |
| Medical Devices |
| Industries |
|---|
| Material Handling Equipment Manufacturer |
| Packaging Equipment Manufacturer |
| Medical Equipment |
| Pneumatic Equipment |
| Office Equipment |
| Assembling Machine Industry |
Thomson Electrak® 1 SP Linear Actuator (ILA)
It is DC actuator with IP 65 protection,12 v dc/ 24 v dc . Acme screw drive is there. It is a maintenance-free electric cylinder, suitable for a 25% duty cycle. Max stroke is 8 inches= 200 mm. It has 10 K ohm POT feedback.

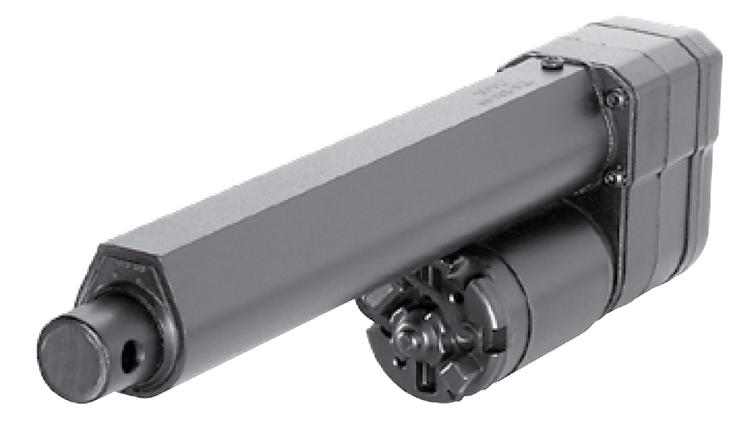

Variant Image

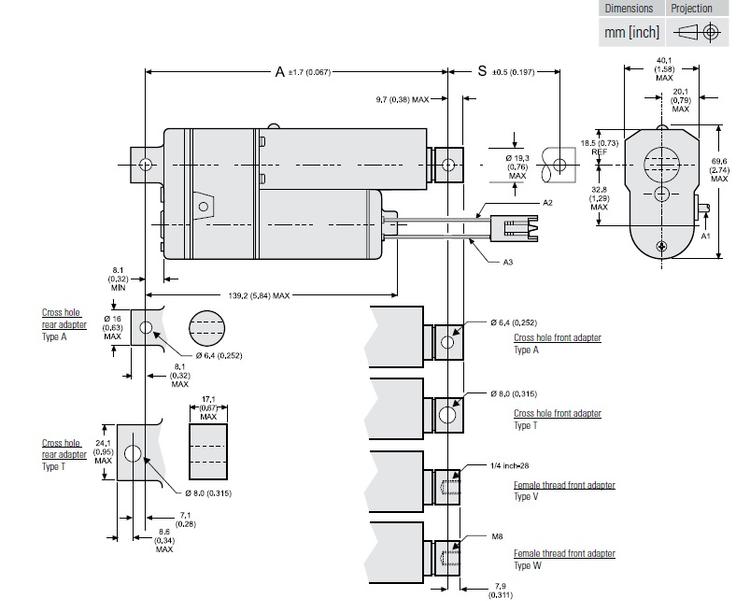

Variant Diagram
