Thomson Electrak® GX AC Linear Actuator (ILA)
Thomson makes AC actuators in the USA and Sweden. It is 1 ph x 230 V ac/ 1 ph x 115 V AV/ 3 ph x 400 V AC. It has a Stainless steel extension tube, a Self-locking acme screw drive system, Overload clutch built-in for mid and end of stroke protection. The motor has a thermal switch. An electric actuator is maintenance free.

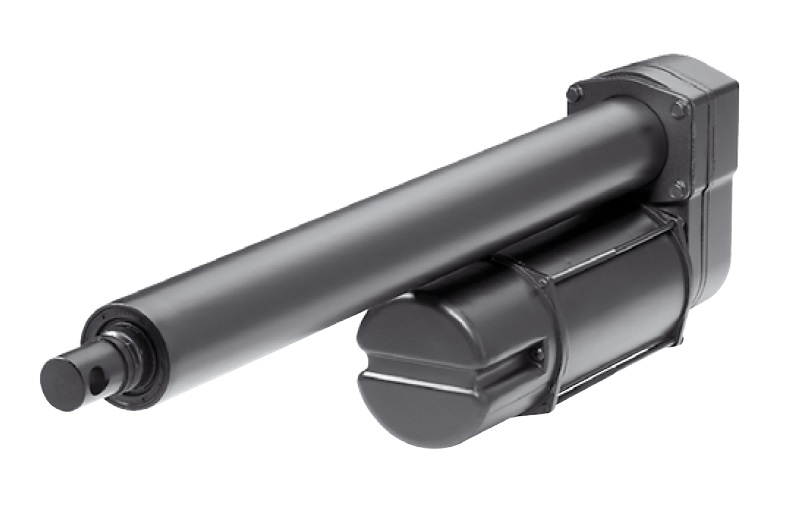

Variant Image

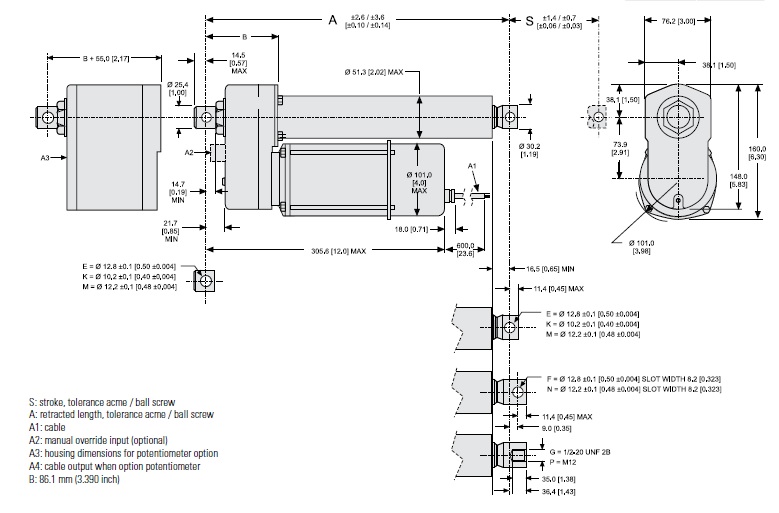

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Available Input Voltages | 1 × 115 Vac | 3 × 400 Vac |
| Dynamic Load | - | 9000 N |
| Static Load | - | 18000 N |
| Speed @ no Load/Max. load | - | 53/43 MM/S |
| Ordering Stroke Length | - | 24 Inch |
| Operating Temperature limits | -25 °C | 65 °C |
Variant Applications
| Machines / Applications |
|---|
| Trucks and Mobile Lifting Aids |
| Lab Automation - Pick & Place |
| Industries |
|---|
| Material Handling Equipment Manufacturer |
| Packaging Equipment Manufacturer |
| Medical Equipment |
| Pneumatic Equipment |
| Office Equipment |
| Assembling Machine Industry |
Thomson Electrak® GX AC Linear Actuator (ILA)
Thomson makes AC actuators in the USA and Sweden. It is 1 ph x 230 V ac/ 1 ph x 115 V AV/ 3 ph x 400 V AC. It has a Stainless steel extension tube, a Self-locking acme screw drive system, Overload clutch built-in for mid and end of stroke protection. The motor has a thermal switch. An electric actuator is maintenance free.
Variant Image

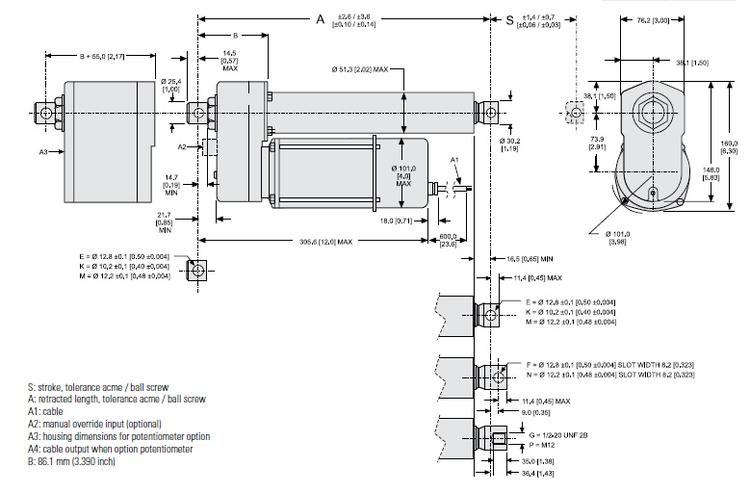

Variant Diagram
