Thomson Electrak® HD Linear Actuator (ILA)
HD series is the new generation DC actuator from Thomson. The electric cylinder has a feedback option, CANBUS J1939 connection, IP 69 K protection. The max stroke is 1000 mm with 10 Kn force and 16 Kn force with 500 mm stroke. It has an overcurrent limit with a PCB inside. The duty cycle is 25%. We can combine say 4 actuators for SYN motion eg vertical lift

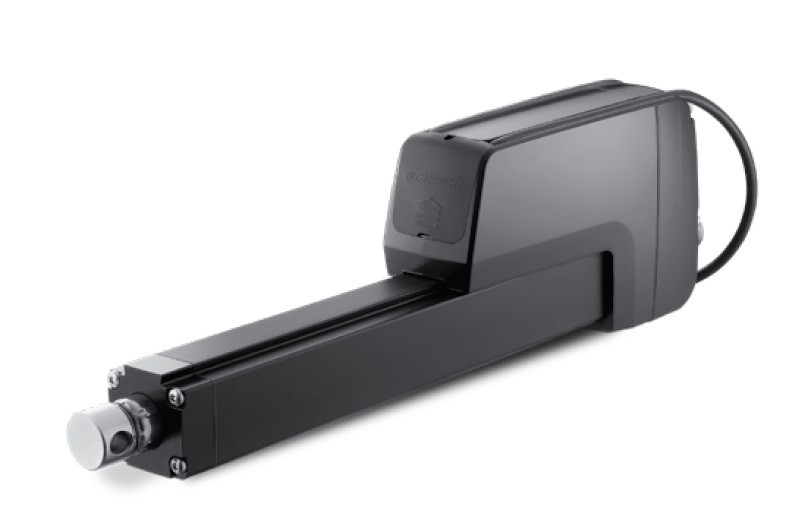

Variant Image

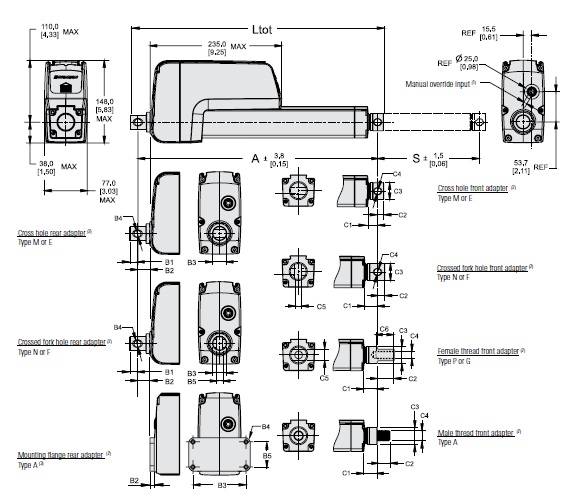

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Available Input Voltages | 12 Vdc | 48 Vdc |
| Dynamic Load | 1700 N | 16000 N |
| Static Load | - | 18000 N |
| Speed @ no Load/Max. load | - | 71/58 mm/s |
| ordering Stroke Length | 100 mm | 1000 mm |
| Operating Temperature Limits | -40 °C | 85 °C |
Variant Applications
| Machines / Applications |
|---|
| MINUTEMAN (USA) Floor cleaning machine Model – SCV -28/32 |
| Acid Pickling point |
| Industries |
|---|
| Material Handling Equipment Manufacturer |
| Packaging Equipment Manufacturer |
| Medical Equipment |
| Pneumatic Equipment |
| Office Equipment |
| Assembling Machine Industry |
