Thomson Electrak® PPA Linear Actuator (ILA)
Thomson makes AC actuator PPA series in the USA. It is 1 ph x 115 V AV/ 1ph x 230 V AC . It has a Stainless steel extension tube, a Self-locking acme screw drive system, Overload clutch built-in for mid and end of stroke protection. The motor has a thermal switch. An electric actuator is maintenance free.

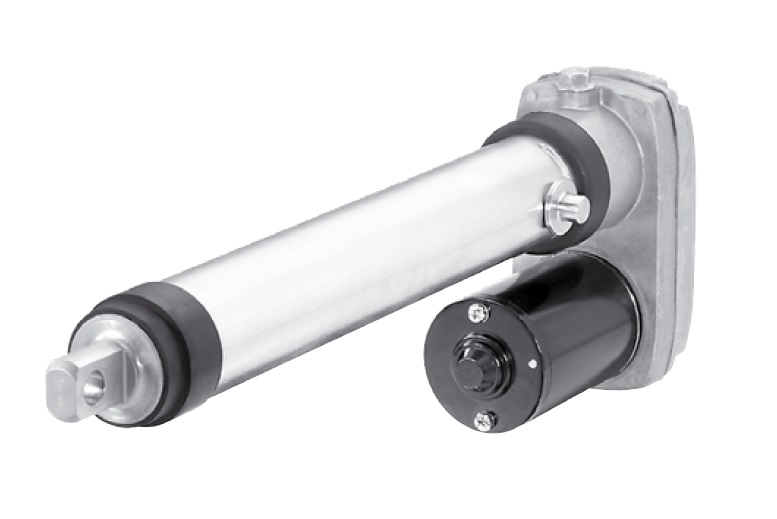

Variant Image

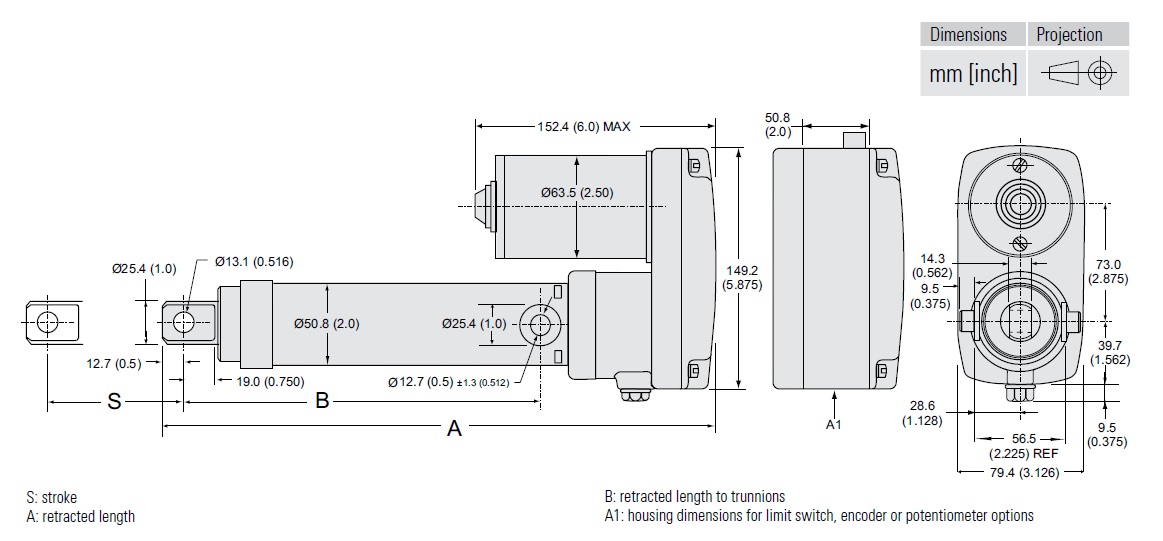

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Available Input Voltages | 12 Vdc | 36 Vdc |
| Dynamic Load | - | 6670 N |
| Static Load | - | 13350 N |
| Speed @ no Load/Max. Load | - | 32/28 MM/S |
| Ordering Stroke Length | - | 36 Inch |
| Operating Temperature Limits | -25 °C | 65 °C |
Variant Applications
| Machines / Applications |
|---|
| Heavy Duty Applications |
| Wheelchair Versatility |
| Industries |
|---|
| Material Handling Equipment Manufacturer |
| Packaging Equipment Manufacturer |
| Medical Equipment |
| Pneumatic Equipment |
| Office Equipment |
| Assembling Machine Industry |
