Thomson Electrak® Throttle Linear Actuator (ILA)
It is a proven Throttle actuator, used in MOH / earthmoving applications. IP 69 K protection is there, CANBUS J1939 option is there. The stroke is 2 inches and forces 13 kg or 130 N. It has 12 v dc / 24 v dc with the feedback option.

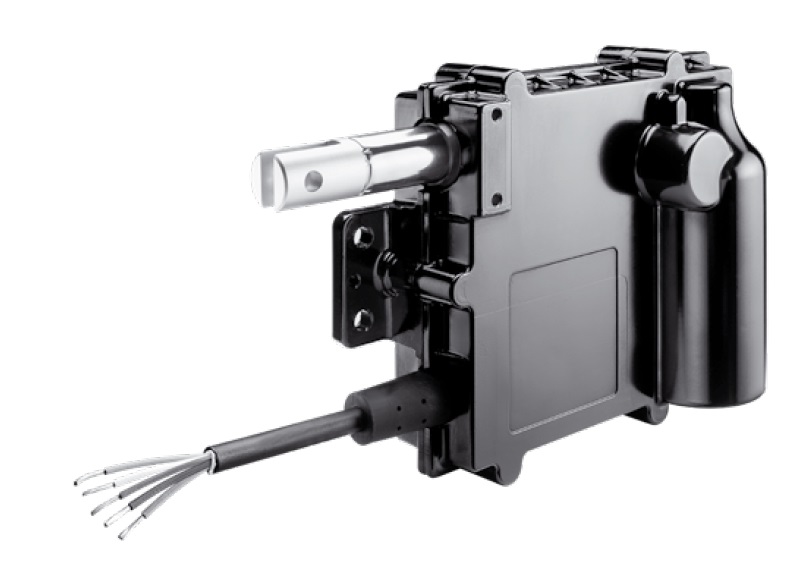

Variant Image

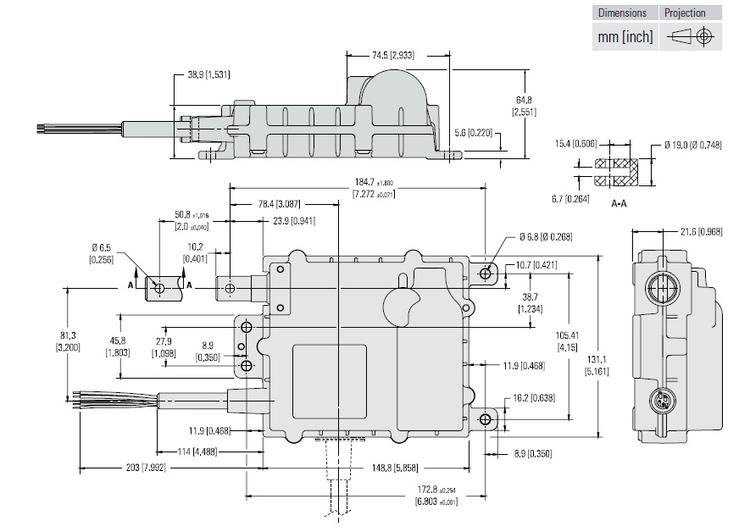

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Available Input Voltages | 12 Vdc | 24 Vdc |
| Dynamic Load | 45 N | 130 N |
| Static Load | - | 260 N |
| Speed @ no Load/Max. Load | - | 98/83 MM/S |
| Ordering Stroke Length | - | 2 inch |
| Operating Temperature limits | -40 °C | 125 °C |
Variant Applications
| Machines / Applications |
|---|
| Throttle control of JCB / L&T construction/ Atlas Copco / Firefly pumps / |
| Industries |
|---|
| Material Handling Equipment Manufacturer |
| Packaging Equipment Manufacturer |
| Medical Equipment |
| Pneumatic Equipment |
| Office Equipment |
| Assembling Machine Industry |
Thomson Electrak® Throttle Linear Actuator (ILA)
It is a proven Throttle actuator, used in MOH / earthmoving applications. IP 69 K protection is there, CANBUS J1939 option is there. The stroke is 2 inches and forces 13 kg or 130 N. It has 12 v dc / 24 v dc with the feedback option.
Variant Image

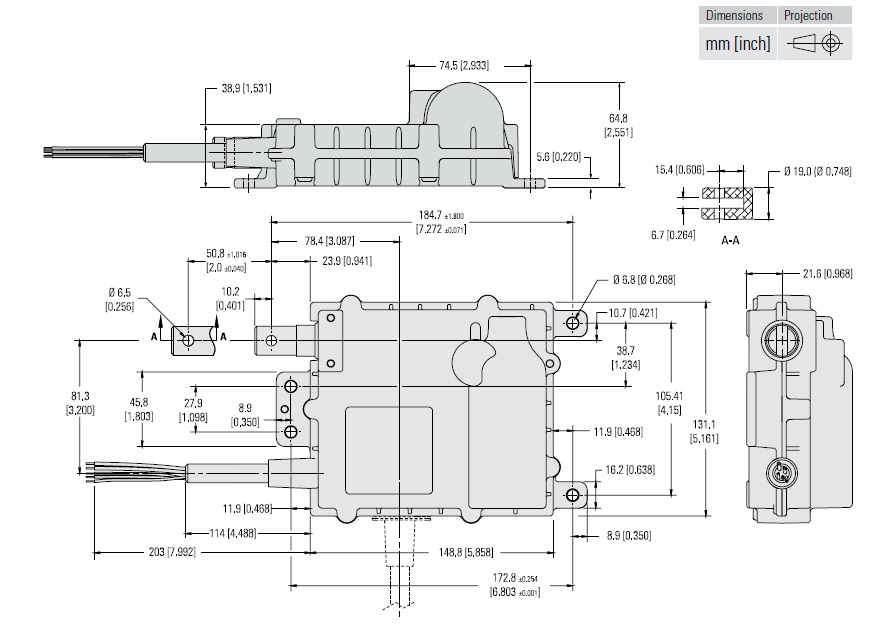

Variant Diagram
