Thomson LM80-H Linear Actuator (ILA)
It is a Rodless actuator with a very high bending moment capacity of 600 N-m . 12 v dc and 24 v dc available, typically used in medical applications

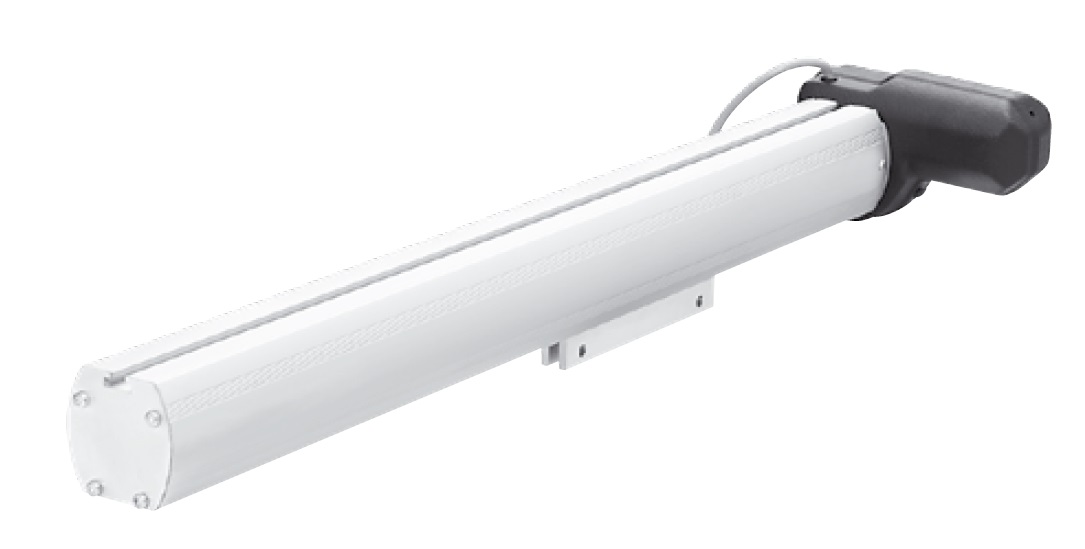

Variant Image

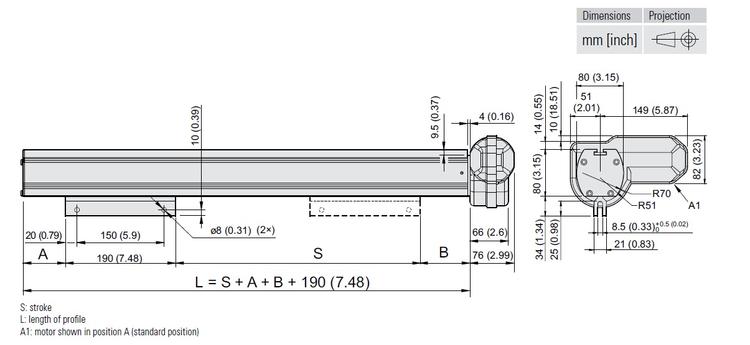

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Available Input Voltages | 12 Vdc | 24 Vdc |
| Dynamic Load | - | 750 N |
| Static Load | - | 2000 N |
| Speed @ no Load/Max. Load | - | 110/73 MM/S |
| Ordering Stroke Length | - | 1500 MM |
| Operating Temperature Limits | 0 °C | 40 °C |
Variant Applications
| Machines / Applications |
|---|
| Lifting Applications |
| Industries |
|---|
| Material Handling Equipment Manufacturer |
| Packaging Equipment Manufacturer |
| Medical Equipment |
| Pneumatic Equipment |
| Office Equipment |
| Assembling Machine Industry |
Thomson LM80-H Linear Actuator (ILA)
It is a Rodless actuator with a very high bending moment capacity of 600 N-m . 12 v dc and 24 v dc available, typically used in medical applications
Variant Image

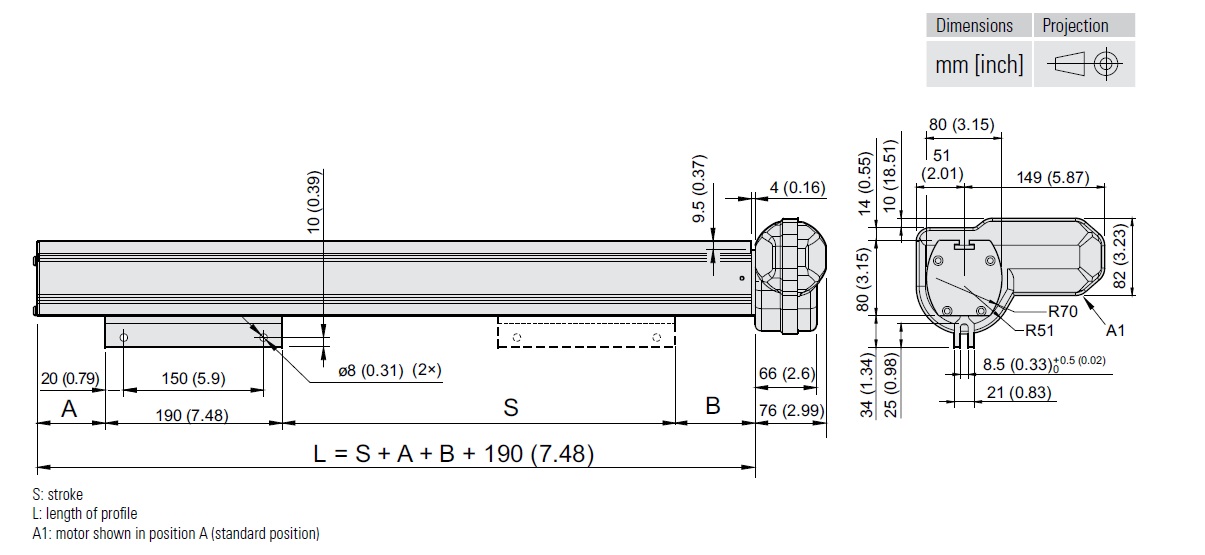

Variant Diagram
