Thomson Max Jac Linear Actuator (ILA)
It is DC actuator with IP 69 K protection,12 v dc/ 24 v dc . It is 200 hours salt spray tested. Acme screw and ball screw options are there. It is maintenance free electric cylinder suitable for a 25% duty cycle

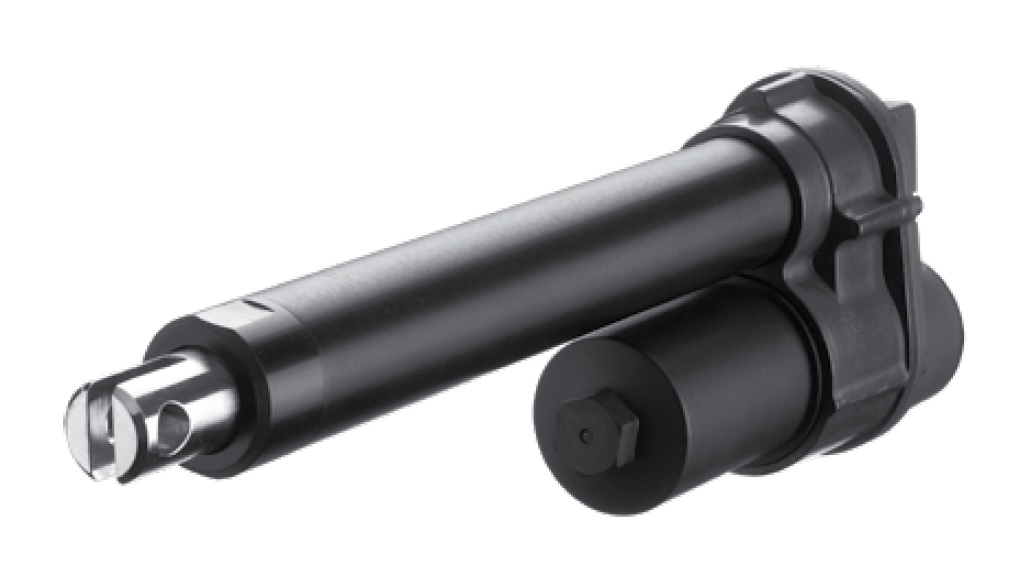

Variant Image

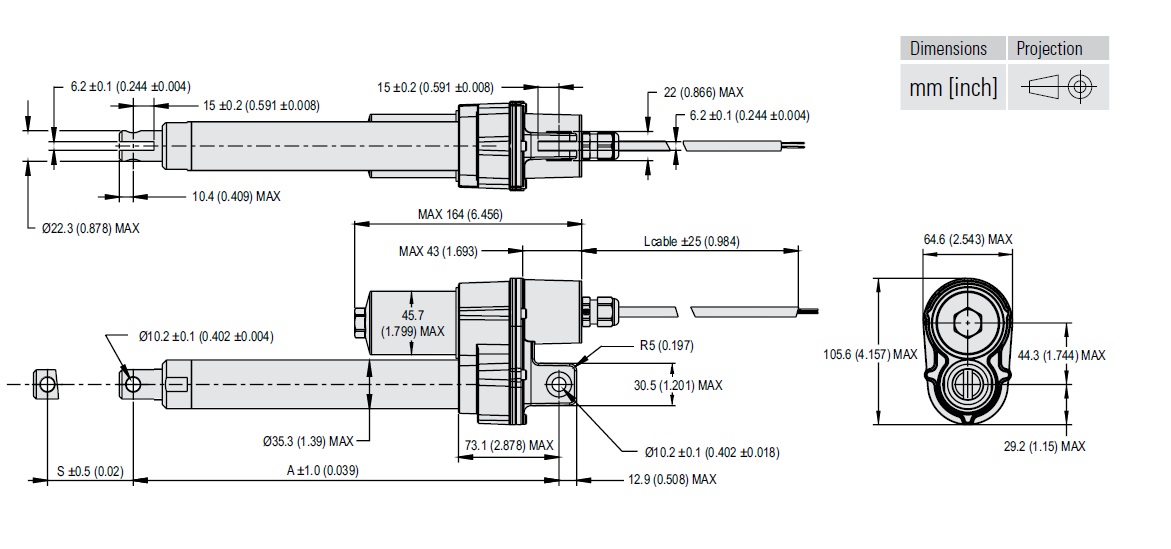

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Available Input Voltages | 12 Vdc | 24 Vdc |
| Dynamic Load | 500 N | 800 N |
| Static Load | - | 2000 N |
| Speed @ no Load/Max. Load | - | 60/30 MM/S |
| Ordering Stroke Length | - | 300 MM |
| Operating temperature limits | -40 °C | 85 °C |
Variant Applications
| Machines / Applications |
|---|
| Carton Packing |
| Wheelchair Adjustments |
| Industries |
|---|
| Material Handling Equipment Manufacturer |
| Packaging Equipment Manufacturer |
| Medical Equipment |
| Pneumatic Equipment |
| Office Equipment |
| Assembling Machine Industry |
Thomson Max Jac Linear Actuator (ILA)
It is DC actuator with IP 69 K protection,12 v dc/ 24 v dc . It is 200 hours salt spray tested. Acme screw and ball screw options are there. It is maintenance free electric cylinder suitable for a 25% duty cycle
Variant Image

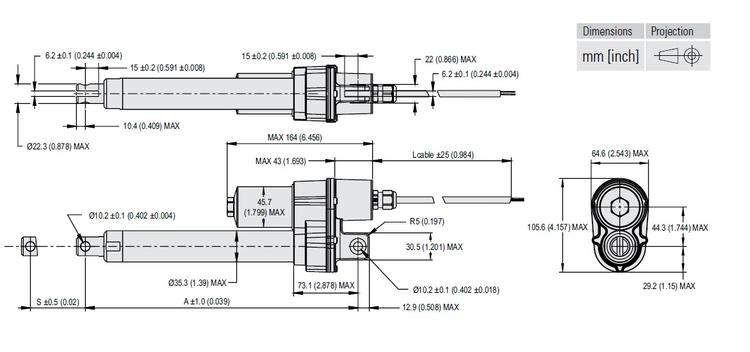

Variant Diagram
