Thomson WhisperTrak™ Linear Actuator (ILA)
It is a medical actuator, a very quiet, low noise level unit. Force is 2000 n and 4000 N. 24 v dc with handheld remote option.

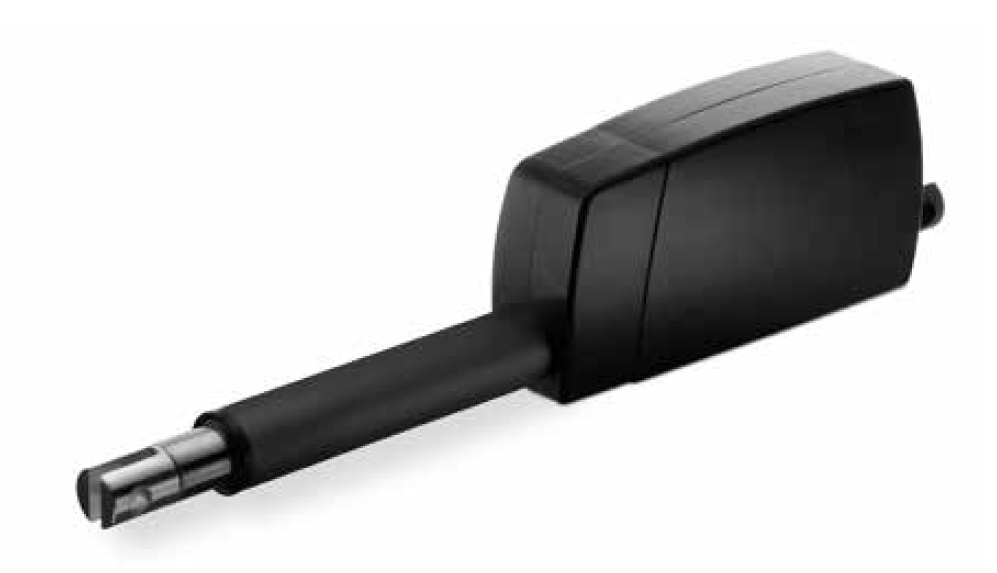

Variant Image

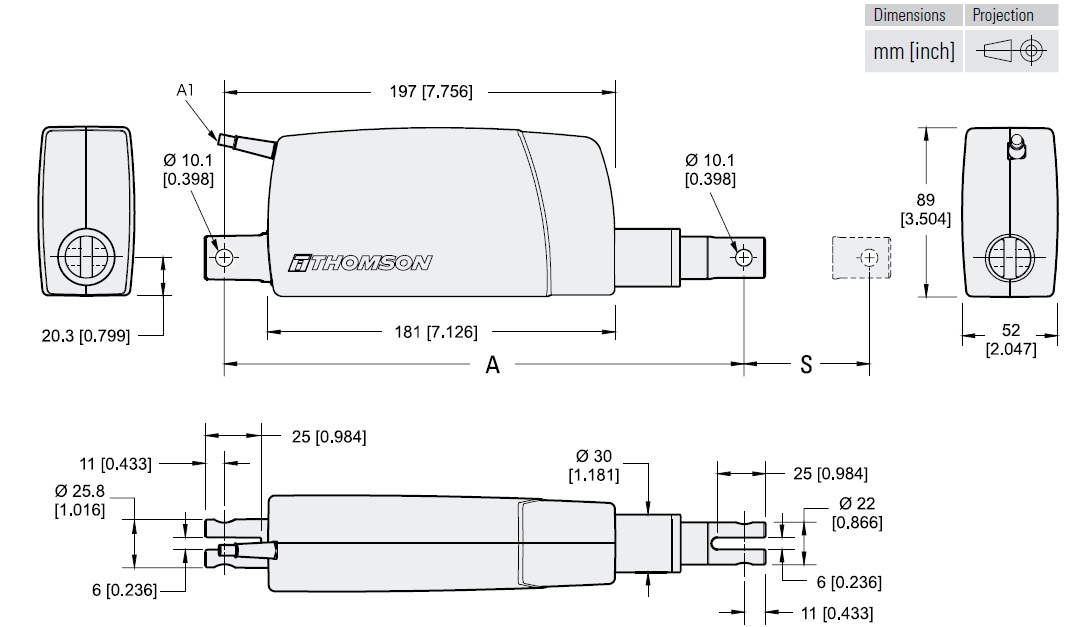

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Available Input Voltages | 12 Vdc | 24 Vdc |
| Dynamic Load | - | 4000 N |
| Static Load | - | 4000 N |
| Speed @ no Load/Max. load | - | 11/8 MM/S 11/8 mm/s |
| Ordering Stroke Length | - | 50 MM |
| Operating Temperature Limits | -25 °C | 40 °C |
Variant Applications
| Machines / Applications |
|---|
| Heavy Duty Applications |
| Industries |
|---|
| Material Handling Equipment Manufacturer |
| Packaging Equipment Manufacturer |
| Medical Equipment |
| Pneumatic Equipment |
| Office Equipment |
| Assembling Machine Industry |
Thomson WhisperTrak™ Linear Actuator (ILA)
It is a medical actuator, a very quiet, low noise level unit. Force is 2000 n and 4000 N. 24 v dc with handheld remote option.
Variant Image

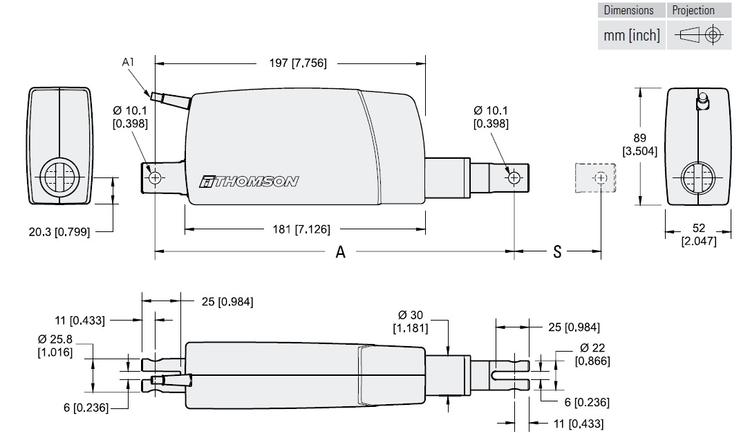

Variant Diagram
