Thomson ECT series Precision Linear Actuator (PLA)
The Thomson ECT series precision actuator comes with a built-in servo motor or AC motor. The control has to be purchased separately. Parallel mounting on inline mounting with suitable motor/ gearbox is available

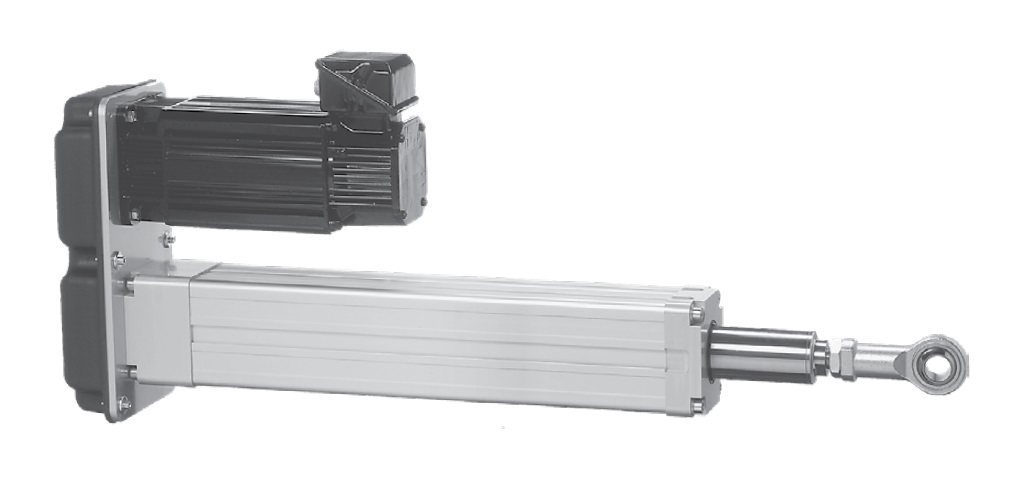

Variant Image

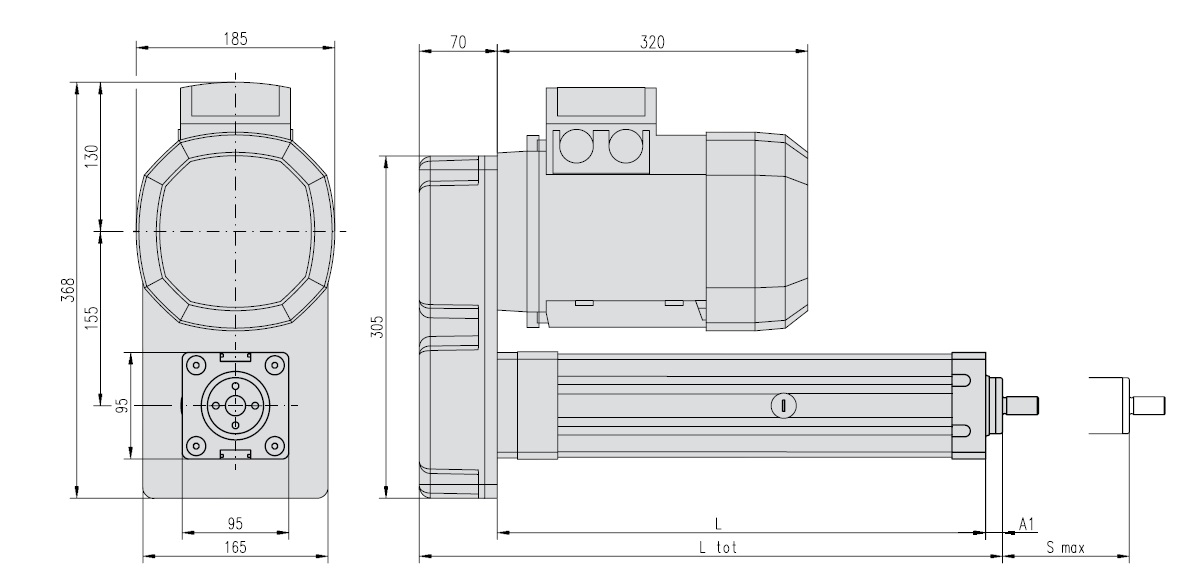

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Load, Fx | Minimum value of the parameter depends on the application | 38000 N |
| Load, Fy | Minimum value of the parameter depends on the application | 800 N |
| Load, Fz | Minimum value of the parameter depends on the application | 800 N |
| Load Torque, My | Minimum value of the parameter depends on the application | 300 NM |
| Load Torque, Mz | Minimum value of the parameter depends on the application | 300 NM |
| Stroke | Minimum value of the parameter depends on the application | 2000 MM |
| Speed | Minimum value of the parameter depends on the application | 2.5 M/S |
Variant Applications
| Machines / Applications |
|---|
| Engine Test Bed Throttle Application |
| Ventilation Equipment |
| Vehicle Applications |
| Print Shop Equipment |
| Paper Mills |
| Laser Cutting Machines |
| Electric Discharge Machines |
| Industries |
|---|
| Industrial Robots |
| Materials Handling |
| Semiconductor Manufacturing |
| Packaging/Packing industry |
Thomson ECT series Precision Linear Actuator (PLA)
The Thomson ECT series precision actuator comes with a built-in servo motor or AC motor. The control has to be purchased separately. Parallel mounting on inline mounting with suitable motor/ gearbox is available
Variant Image

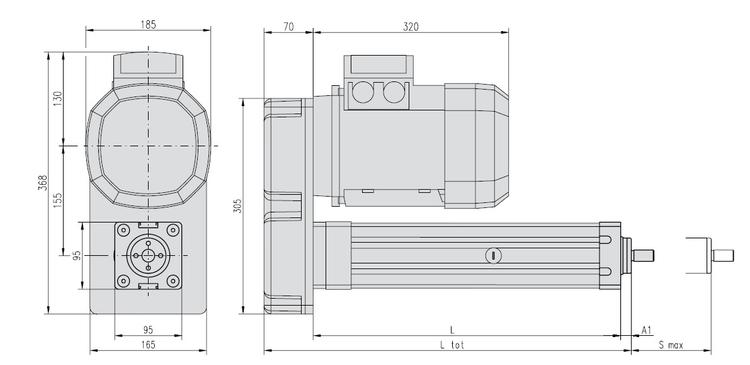

Variant Diagram
