Thomson PC series Precision Linear Actuator (PLA)
Thomson precision actuators PC series have IP 65 protection. The servo cylinders can be connected to any servo motor/ AC motor/ stepper motor / DC motor as per application. Thomson supplies only the linear actuator without a motor. Suitable bell housing is provided for the connection of the motor. max speed of 1.6 m / sec is possible here. use it for 100% duty cycle = 24 x7 working

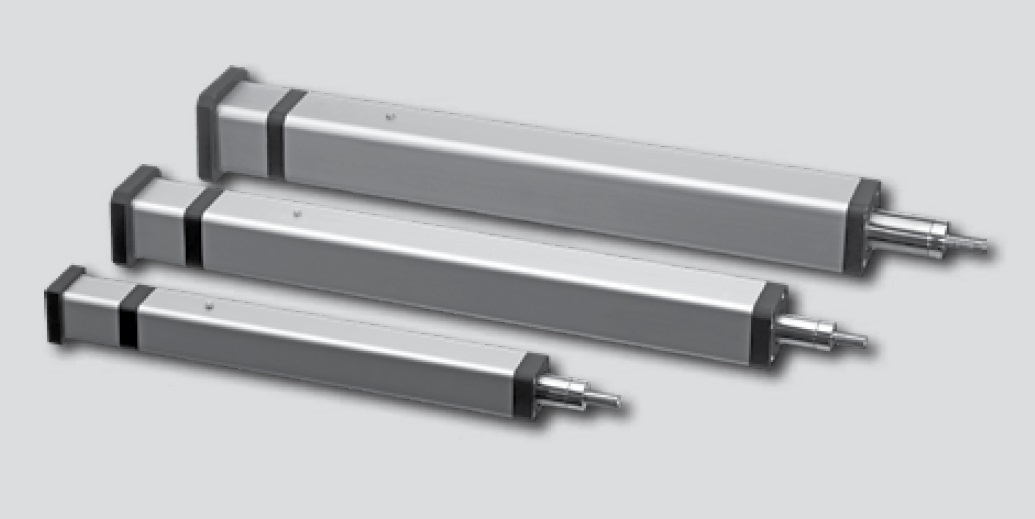

Variant Image

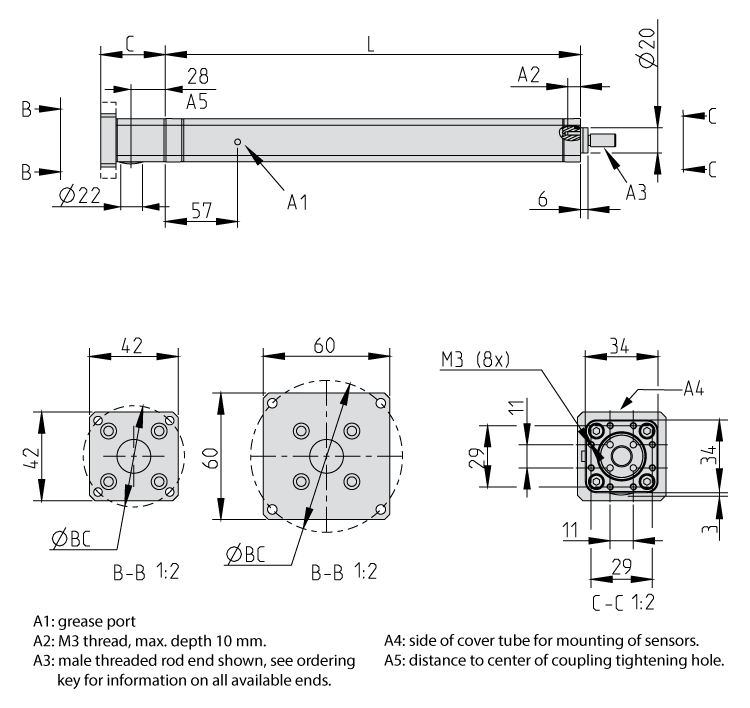

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Max Load, Fx | 1250 N | 6000 N |
| Stroke Length Range | 70-600 MM | 120-1200 MM |
| Max Speed | 1 M/S | 1.66 M/S |
| Profile Size | 34 x 34 MM | 55 x 55 MM |
Variant Applications
| Machines / Applications |
|---|
| Form, Fill and Seal Equipment |
| Sorting Arms and Pushers in Grading |
| Testing Machines (Inspection) |
| Molding, Can and Box Manufacturing equipment |
| Industries |
|---|
| Printing Equipments Manufacturer |
| Packaging Equipment Manufacturer |
| Conveying, Sorting and Pick and Place |
| Automation Equipment Manufacturer |
