Thomson T-series Precision linear actuator (PLA)
Thomson precision actuators have IP 65 protection. The servo cylinders can be connected to any servo motor/ AC geared motor/ stepper motor / DC motor as per application. Thomson supplies only the linear actuator without a motor. Suitable bell housing is provided for the connection of the motor. max speed of 2.5 m / sec is possible here. The maximum force possible is 60 Kn ie 6 Ton.Use it for 100% duty cycle = 24 x7 working

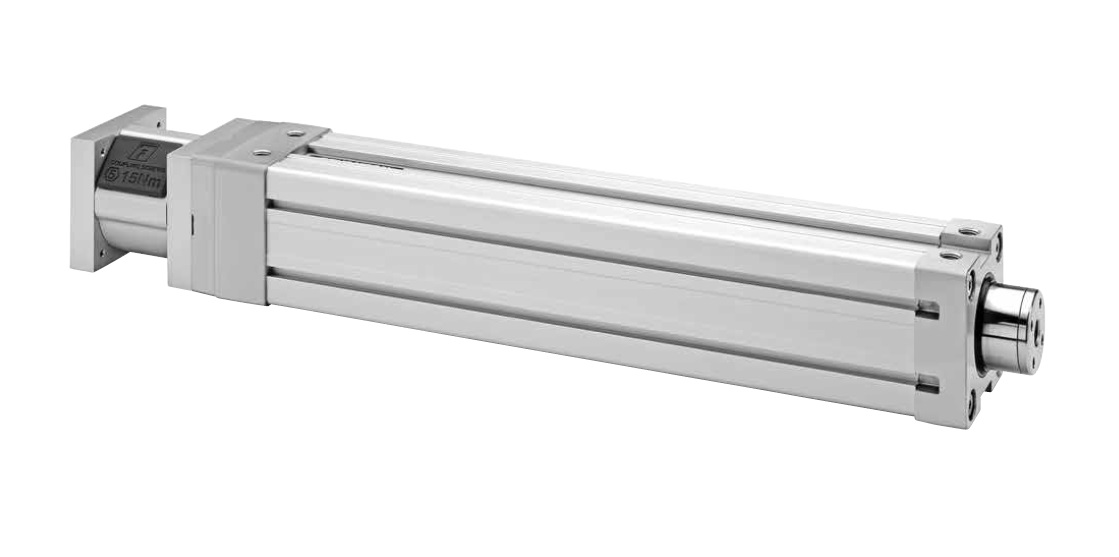

Variant Image

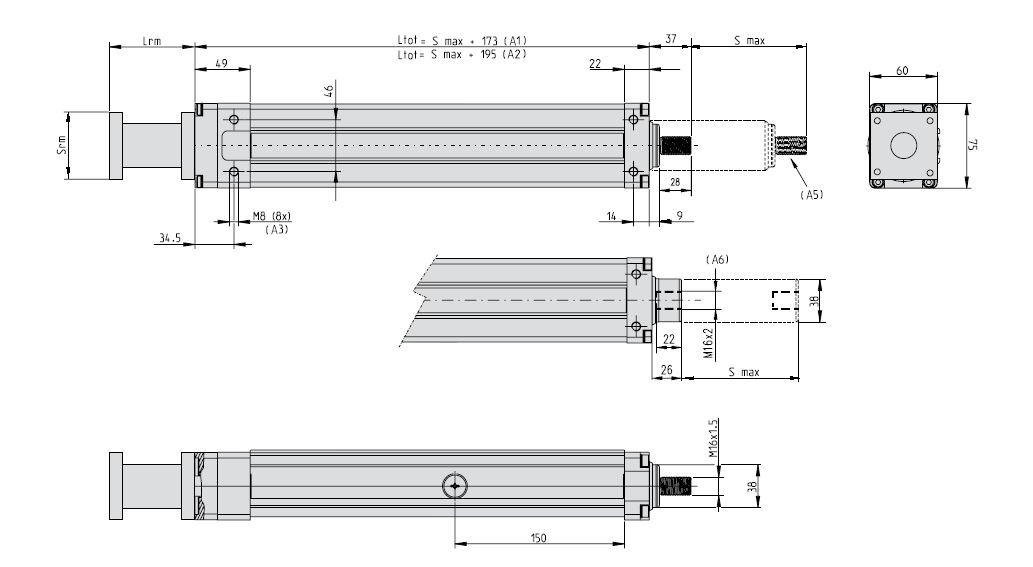

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Load, Fx | Minimum value of the parameter depends on the application | 60000 N |
| Load, Fy | Minimum value of the parameter depends on the application | 800 N |
| Load, Fz | Minimum value of the parameter depends on the application | 800 N |
| Load Torque, My | Minimum value of the parameter depends on the application | 300 Nm |
| Load Torque, Mz | Minimum value of the parameter depends on the application | 300 Nm |
| Stroke | Minimum value of the parameter depends on the application | 2000 MM |
| Speed | Minimum value of the parameter depends on the application | 2.5 M/S |
Variant Applications
| Machines / Applications |
|---|
| Engine Test Bed Throttle Application |
| Ventilation Equipment |
| Vehicle Applications |
| Print Shop Equipment |
| Paper Mills |
| Laser Cutting Machines |
| Electric Discharge Machines |
| Industries |
|---|
| Industrial Robots |
| Material Handling Equipment Manufacturer |
| Electronic Part Manufacturer |
| Packaging Equipment Manufacturer |
Thomson T-series Precision linear actuator (PLA)
Thomson precision actuators have IP 65 protection. The servo cylinders can be connected to any servo motor/ AC geared motor/ stepper motor / DC motor as per application. Thomson supplies only the linear actuator without a motor. Suitable bell housing is provided for the connection of the motor. max speed of 2.5 m / sec is possible here. The maximum force possible is 60 Kn ie 6 Ton.Use it for 100% duty cycle = 24 x7 working
Variant Image

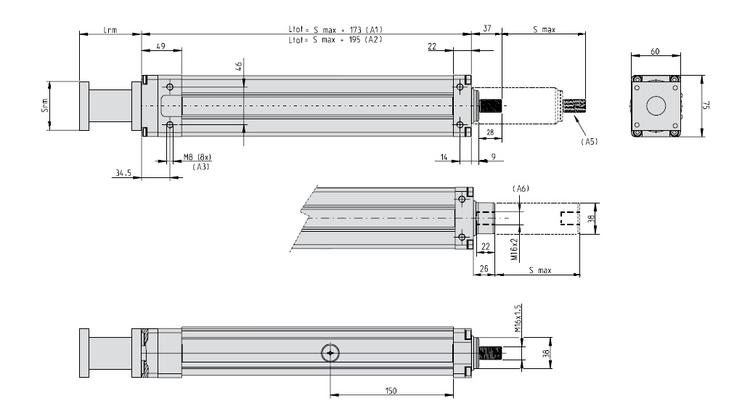

Variant Diagram
