Thomson 400 Series Profile Rail Linear Guides
These are transport grade LM rails typically used in packaging machines, printing machines, general purpose applications. Series 400

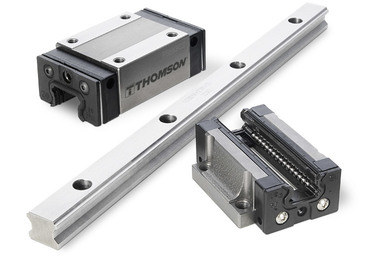

Variant Image

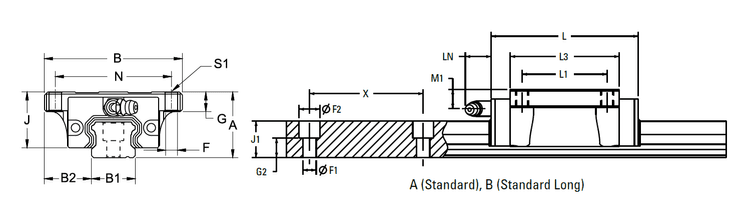

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Rail Width | 15 mm | 55 mm |
| Dynamic Load Rating | - | 125168 N |
| Static Roll | - | 6285 Nm |
| Static Pitch | - | 6463 Nm |
| Static Yaw | - | 6463 Nm |
Variant Applications
| Machines / Applications |
|---|
| Pick and Place Robot |
| Industries |
|---|
| Automobile Industry |
| Packaging Industry |
| Industrial Automation |
Thomson 400 Series Profile Rail Linear Guides
These are transport grade LM rails typically used in packaging machines, printing machines, general purpose applications. Series 400
Variant Image

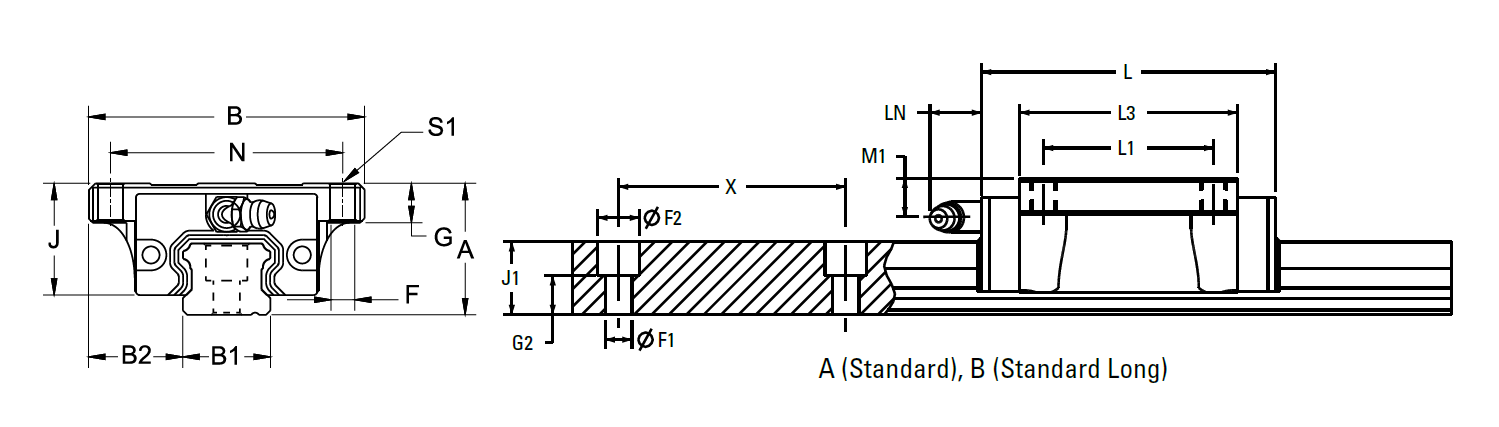

Variant Diagram
