Thomson 500 Series Roller Linear Guides
Thomson roller rail and carriage, series 500 are available, with various preload options and standard rail length up to 6 m. We can increase the length further by "butting" it. Series 500

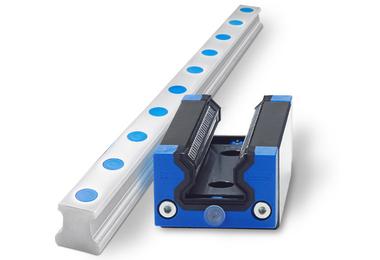

Variant Image

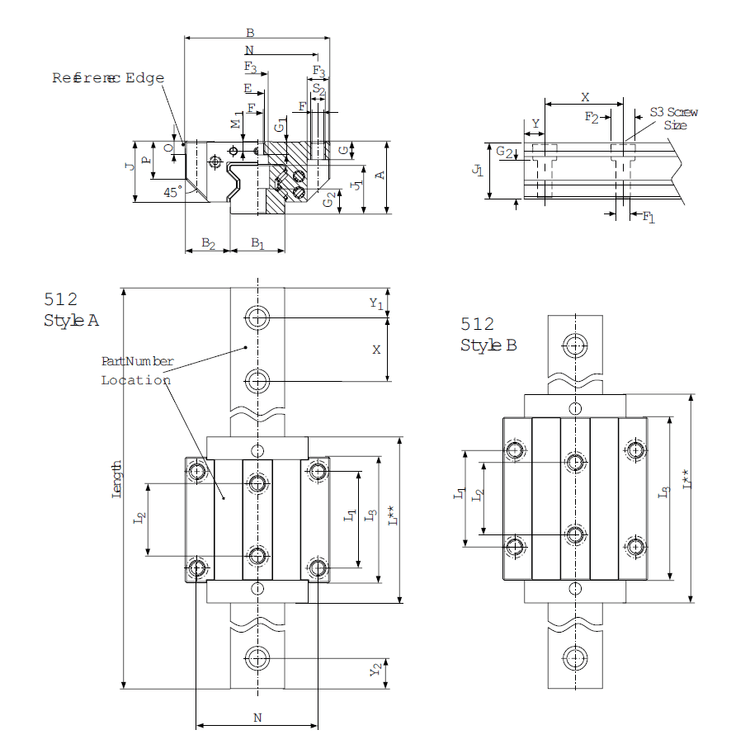

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Rail Width | 15 mm | 65 mm |
| Dynamic Load Rating | - | 2950001 N |
| Static Roll | - | 20913 Nm |
| Static Pitch | - | 17931 Nm |
| Static Yaw | - | 17931 Nm |
Variant Applications
| Machines / Applications |
|---|
| Pick and Place Robot |
| CNC Machines |
| Industries |
|---|
| Material Handling Systems |
| Packaging Industry |
| Automobile Industry |
Thomson 500 Series Roller Linear Guides
Thomson roller rail and carriage, series 500 are available, with various preload options and standard rail length up to 6 m. We can increase the length further by "butting" it. Series 500
Variant Image

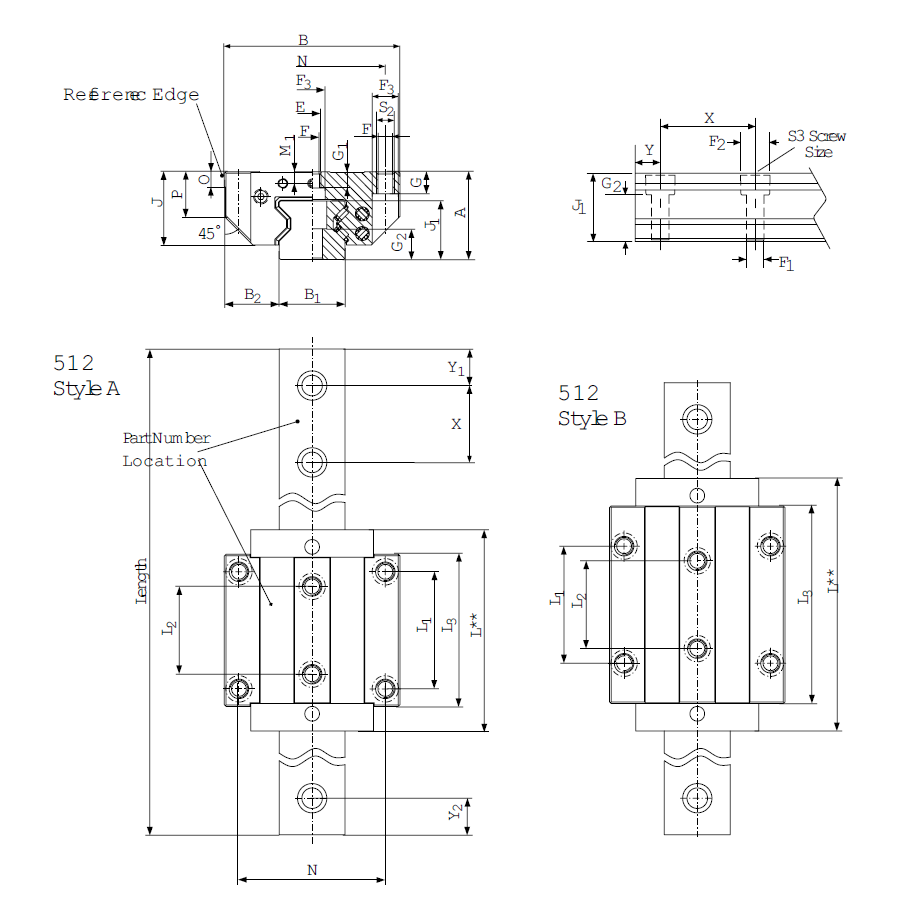

Variant Diagram
