Thomson MicroGuide® Linear Guides
These are miniature rails and carriages used in medical/ Semiconductor applications.

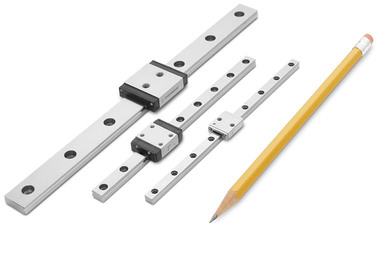

Variant Image

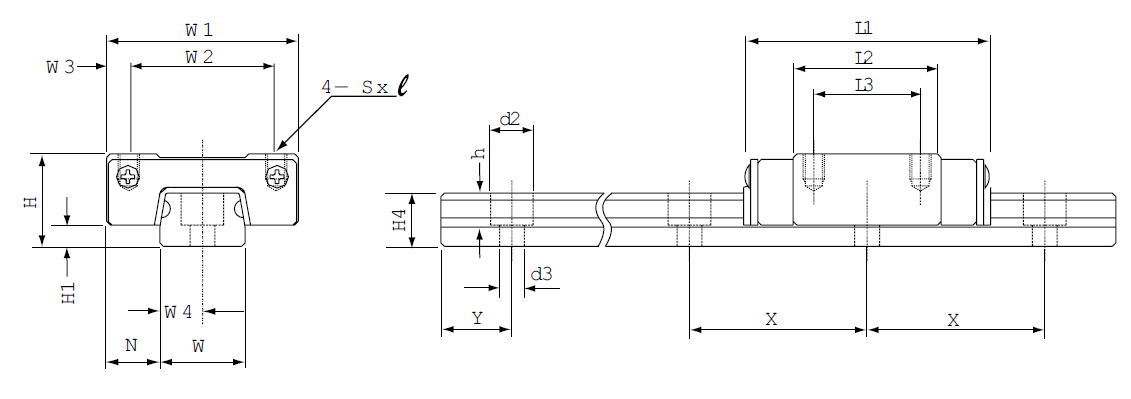

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Rail Width | 7 mm | 15 mm |
| Dynamic Load Rating | - | 5287 N |
| Static Roll | - | 138 Nm |
| Static Pitch | - | 36 Nm |
| Static Yaw | - | 39 Nm |
Variant Applications
| Machines / Applications |
|---|
| Pick and Place Robot |
| Industries |
|---|
| Industrial Automation |
| Automobile Industry |
Thomson MicroGuide® Linear Guides
These are miniature rails and carriages used in medical/ Semiconductor applications.
Variant Image

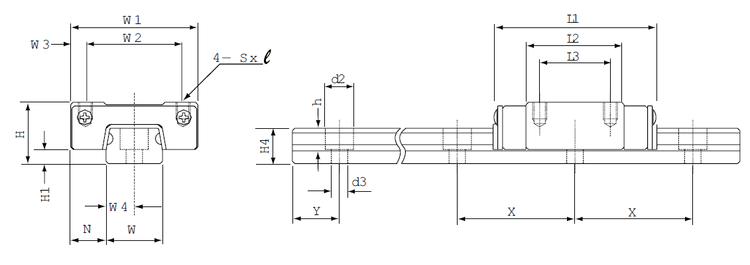

Variant Diagram
