Thomson MLA Stepper Motor Linear Actuator
It is a stepper actuator with, integrated design. Max stroke up to 2.5 inch= 64 mm available. Ideal for variable speed/ position application. You just need an additional stepper drive, the control can be via PLC or such digital device which can generate pulse and direction signal. Ideal for small space application, replace pneumatic cylinders or many components- screw plus motor plus bearing support by a single component. It has anti-rotation built in.

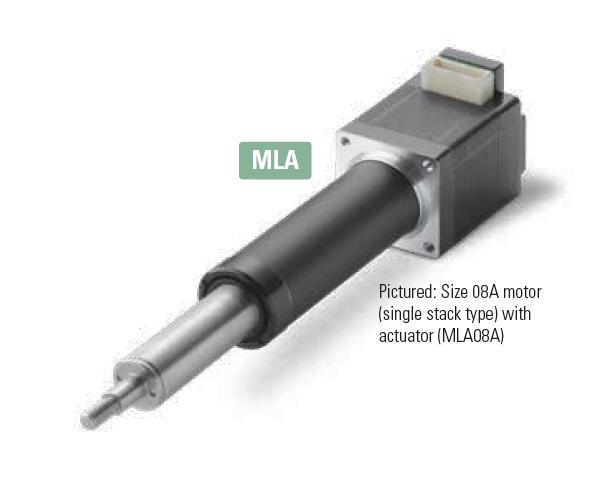

Variant Image

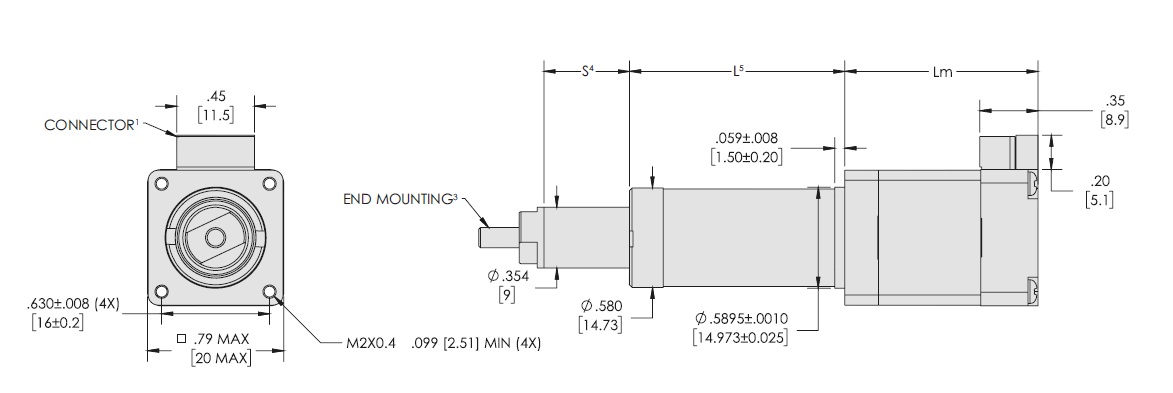

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Motor Current Rating | 0.5 Amps | 3.9 Amps |
| Linear Travel/Rev | 0.013 Inch | 1.378 Inch |
| Axial Load | - | 890 N |
| Operating Temperature | -10 °C | 50 °C |
| Backlash with Standard Nut | - | 0.25 mm |
Variant Applications
| Machines / Applications |
|---|
| Monitor Tilting |
| Robotic Gripper |
| Plate Vertical Positioning |
| Pipetting |
| Conveyor System for Heavy objects (Guide ways for Heavy Loads) |
| Large Machine Tools |
| Industries |
|---|
| Industrial Automation |
| Material Handling Industries |
| Machine Manufacturing Industry |
