Thomson MLS Stepper Motor Linear Actuator
Stepper driven lead screw design actuator, for load capacity up to 890 N. Nut has various options- bronze/ Acetal, with and without backlash. The motorized actuator is a good replacement for a pneumatic cylinder with high precision. Rotating screw design here, made in the USA.

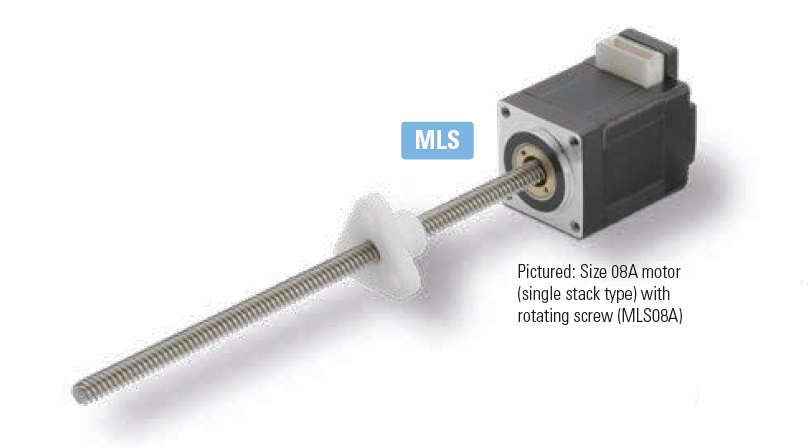

Variant Image

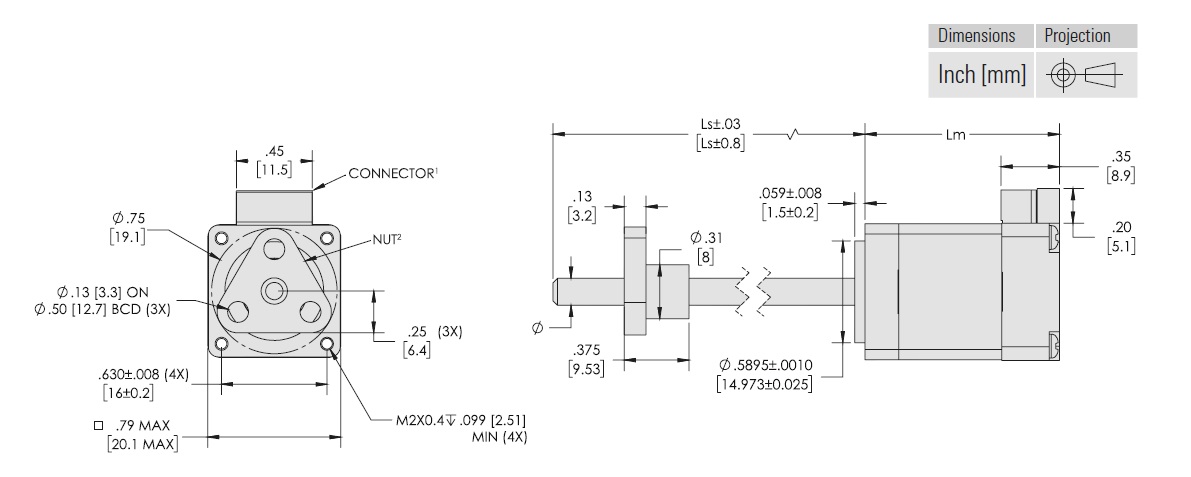

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Motor Current Rating | 0.5 Amps | 3.9 Amps |
| Linear Travel/Rev | 0.013 Inch | 45 MM |
| Axial Load | - | 890 N |
| Operating Temperature | -10 °C | 50 °C |
| Backlash with Standard Nut | - | 0.25 MM |
Variant Applications
| Machines / Applications |
|---|
| 3D Printing |
| Precision Press Ram Guides |
| Fluid Pumps |
| XY Stages |
| Pipetting |
| Conveyor System for Heavy Objects (guide ways for Heavy Loads) |
| Large Machine Tools |
| Industries |
|---|
| Industrial Automation |
| Material Handling Industries |
