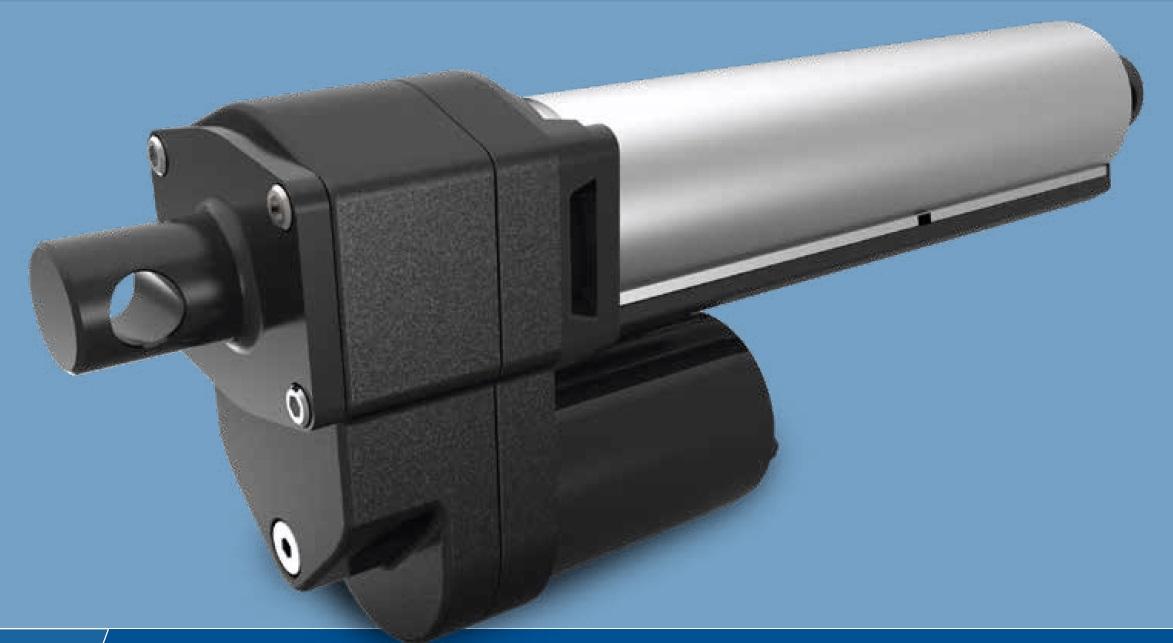

Warner B-track Actuator
It is a K4 actuator with a max 17 KN capacity, ball screw driven in compact package size. It is the best replacement for hydraulic cylinders where hydraulics is not available or not allowed for a regulatory reason. B-track Actuator is made in the USA by Thomson. Warner is part of Thomson now.
Warner B-track Actuator
It is a K4 actuator with a max 17 KN capacity, ball screw driven in compact package size. It is the best replacement for hydraulic cylinders where hydraulics is not available or not allowed for a regulatory reason. B-track Actuator is made in the USA by Thomson. Warner is part of Thomson now.
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Motor Voltage | 12 V | 48 V |
| Normal Operating Voltage | 10 Vdc | 16 Vdc |
| Stroke (Inch)/(MM) | 2/50.8 | 24/609.6 |
| Load Capacity | - | 17760 N |
| Motor Voltage | 12 V | 48 V |
| Normal Operating Voltage | 10 Vdc | 16 Vdc |
| Stroke (Inch)/(MM) | 2/50.8 | 24/609.6 |
| Load Capacity | - | 17760 N |
Machines / Applications
| Mobile off-Highway Equipment |
| Deck and Implement lifts for tractors and mobile applications |
| Solar Panels |
| Scissor and Dump Box Lifts |
| Mobile off-Highway Equipment |
| Deck and Implement lifts for tractors and mobile applications |
| Solar Panels |
| Scissor and Dump Box Lifts |
