Type FO Clutch Couplings
FO series power-on clutch couplings are used to couple two inline shafts. The armature hub assembly is mounted to the load shaft, and the rotor assembly is mounted on the input shaft. The field assembly is mounted to a bulkhead that is perpendicular to the shaft.
Variant Image

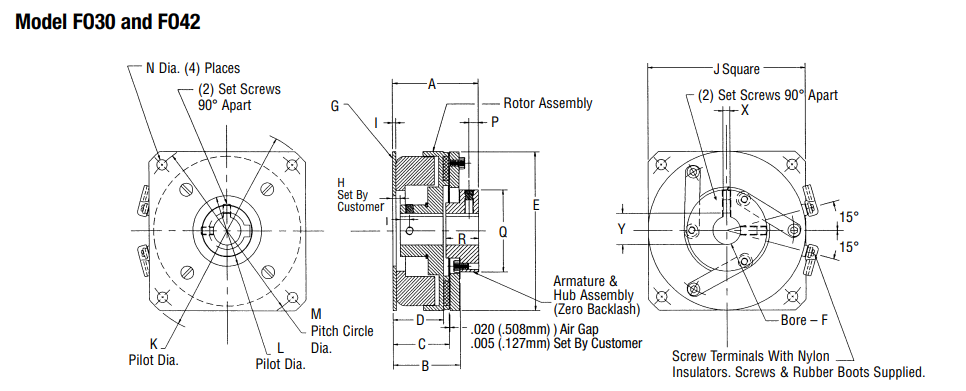

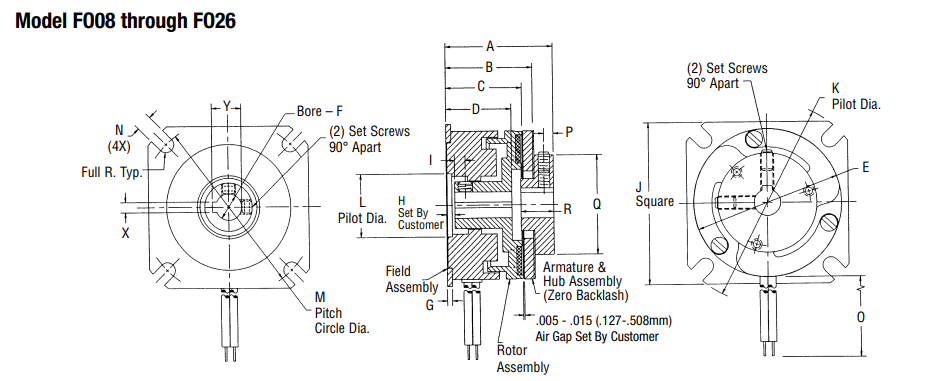

Variant Diagram

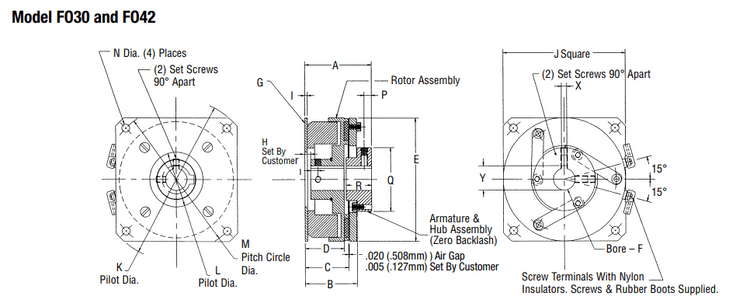

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| F008 Torque | 2.5 | 2.5 |
| F026 Torque | 80 | 80 |
| F030 Torque | 125 | 125 |
| F042 Torque | 250 | 250 |
Variant Applications
| Industries |
|---|
| Manufacturing Industry |
| Automation Industry |
| Warehousing and Logistics Industry |
| Aerospace Industry |
