Type SO Clutch Couplings
SO series power-on clutch couplings are used to couple two inline shafts. The armature hub assembly is mounted to the load shaft, and the rotor assembly is mounted on the input shaft. The field assembly is mounted on the input shaft and retained by a loose-fitting pin or bracket through the anti-rotation tab.

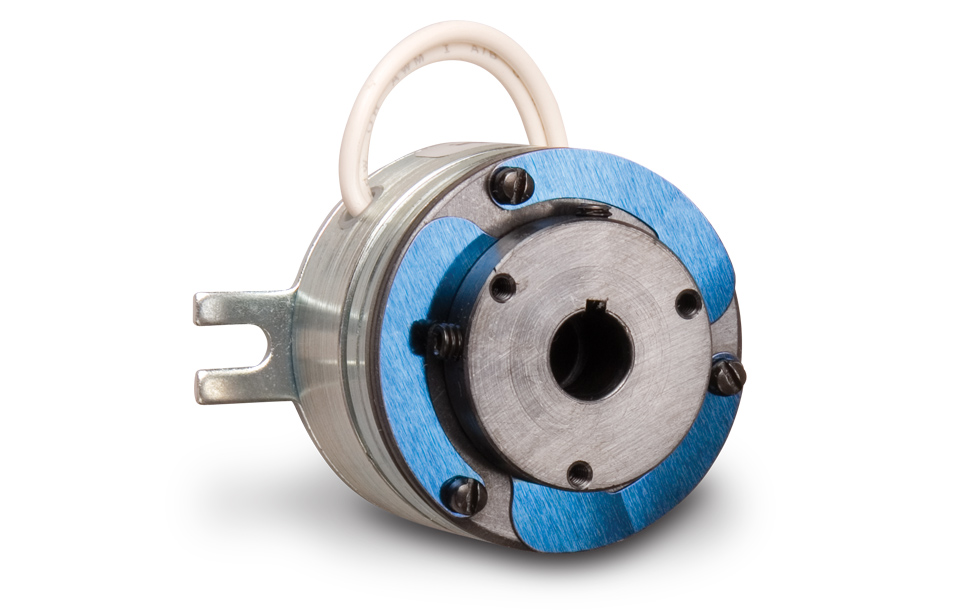

Variant Image

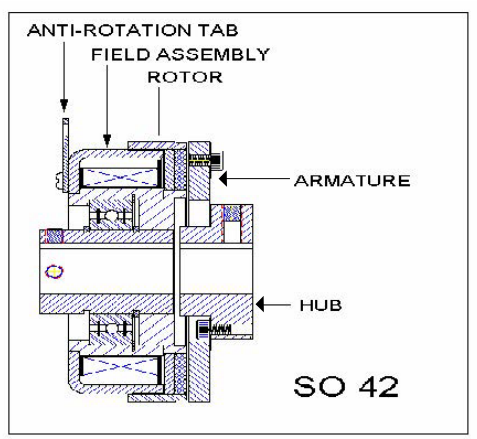

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Size | 8 | 42 |
| Torque | 0.28 NM | 28.24 NM |
Variant Applications
| Industries |
|---|
| Manufacturing Industry |
| Automation Industry |
| Warehousing and Logistics Industry |
| Aerospace Industry |
