Ball Transfer BP Bolt Type
All -in-one bolt, suitable for use in a clean environment
All components such as balls, bodies, and caps can be produced with various materials depending on the intended use.

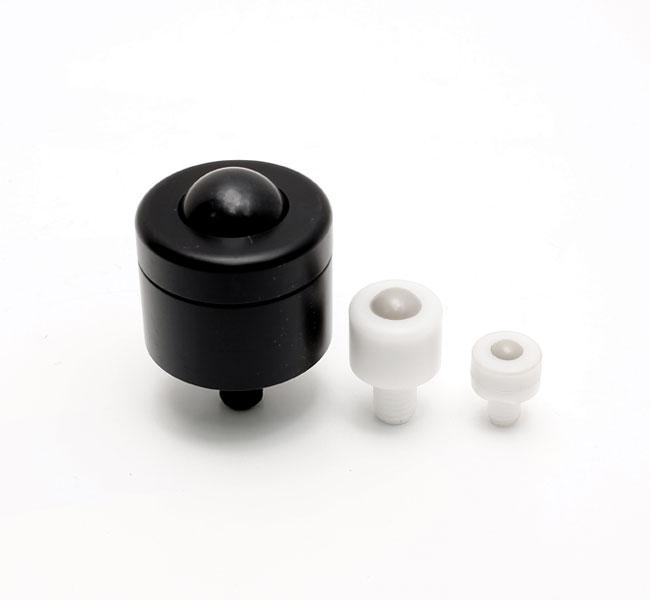

Variant Image

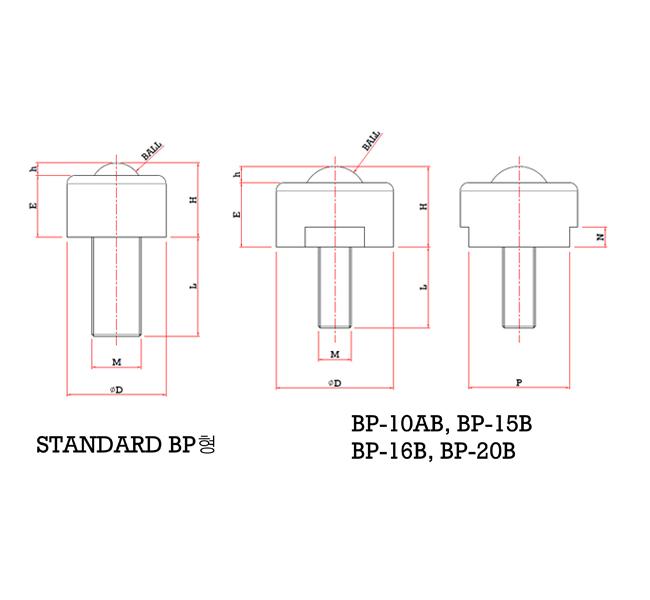

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Ball Size | 1/4" | 1" |
| Housing Diameter | 12 mm | 38.6 mm |
| Housing Height | 7.5 mm | 41 mm |
| Thread Size | M6 | M8 |
| Stud Length | 12 mm | 25 mm |
| Stationary Load | 0.4 Kg | 5 Kg |
| Working Load | 0.2 Kg | 2.5 Kg |
Variant Applications
| Machines / Applications |
|---|
| Lifting Platform |
| Aircraft Transport cargo rolling deck |
| Hydraulic presses |
| Equipment |
| Industries |
|---|
| Material Handling |
| Aircraft Industry |
Ball Transfer BP Bolt Type
All -in-one bolt, suitable for use in a clean environment All components such as balls, bodies, and caps can be produced with various materials depending on the intended use.
Variant Image

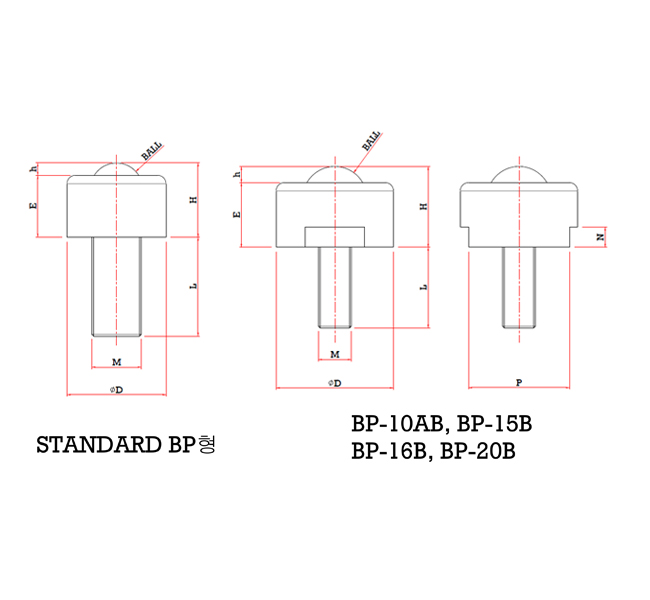

Variant Diagram
