Ball Transfer BS Bolt Type
Convenient assembly and design bolts suitable for high loads are detachable. All components such as balls, bodies, and caps can be produced with various materials depending on the intended use.

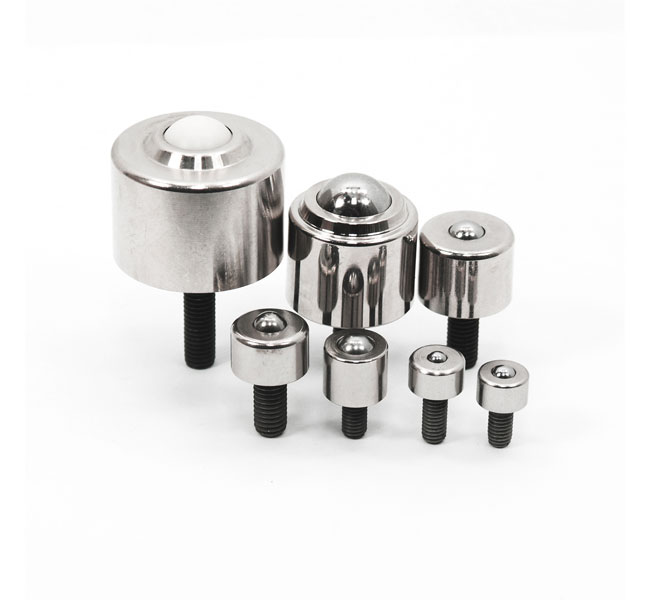

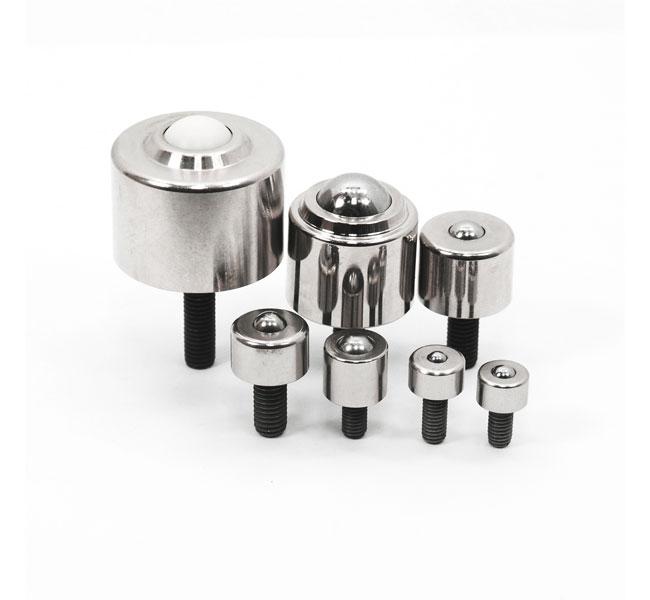

Variant Image

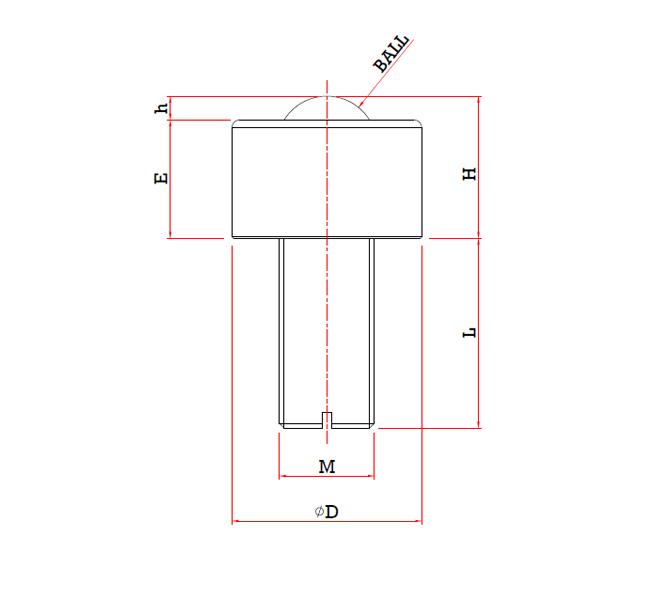

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Ball Size | 1/4" | 2" |
| Housing Diameter | 12 mm | 60 mm |
| Housing Height | 7.5 mm | 50 mm |
| Thread Size | M6 | M12 |
| Stud Length | 12 mm | 35 mm |
| Stationary Load | 20 Kg | 300 Kg |
| Working Load | 10 Kg | 150 Kg |
Variant Applications
| Machines / Applications |
|---|
| Material Handling Equipment |
| Air cargo loader |
| Industries |
|---|
| Electronic |
| Mechanical |
| Chemical |
| Medical |
| Food Industries |
