Ball Transfer BSB Bolt Type
Hexagonal bolt type, easy installation bolt type, designed for high load All components such as balls, bodies, and caps can be produced with various materials depending on the intended use.

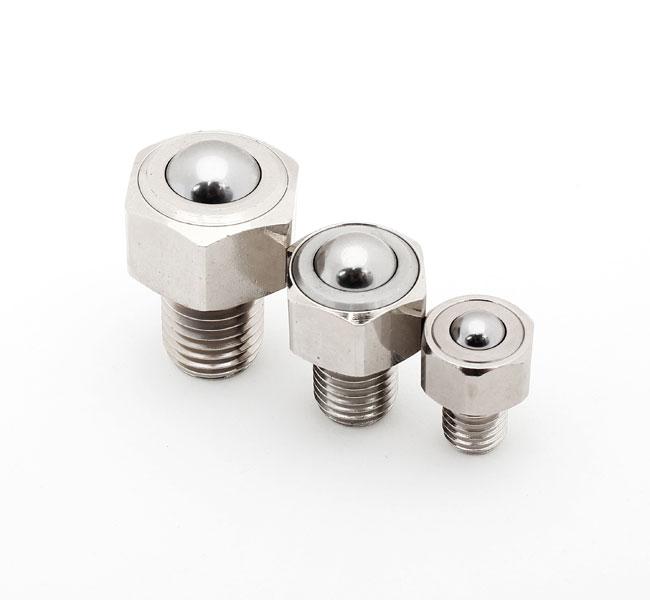

Variant Image

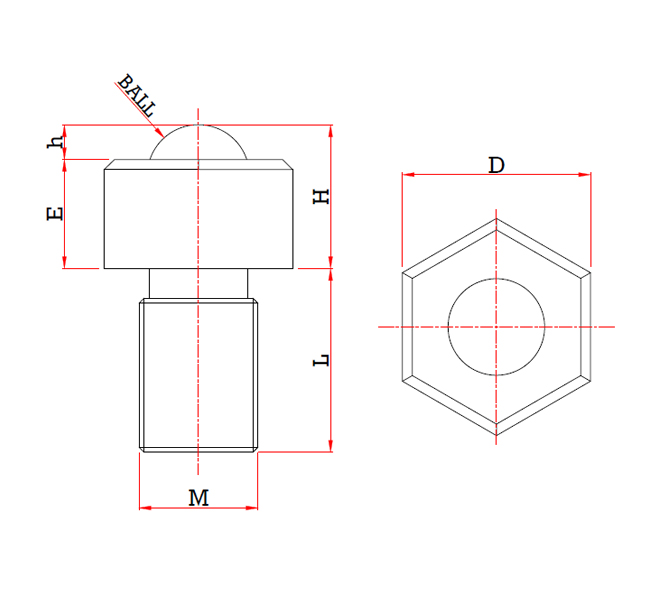

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Ball Size | 13/32" | 1" |
| Housing Diameter | 19 mm | 35 mm |
| Housing Height | 11 mm | 31.5 mm |
| Thread Size | M10 | M20 |
| Stud Length | 12.5 mm | 25 mm |
| Stationary Load | 60 Kg | 200 Kg |
| Working Load | 30 Kg | 100 Kg |
Variant Applications
| Machines / Applications |
|---|
| Lifting Platform |
| Aircraft Transport cargo rolling deck |
| Hydraulic presses |
| Equipment |
| Industries |
|---|
| Packaging Industries |
| Material Handling |
| Aircraft Industry |
Ball Transfer BSB Bolt Type
Hexagonal bolt type, easy installation bolt type, designed for high load All components such as balls, bodies, and caps can be produced with various materials depending on the intended use.
Variant Image

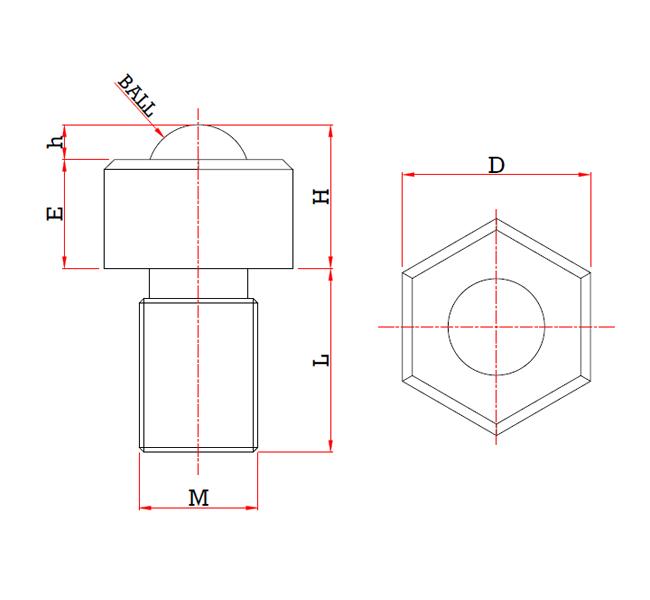

Variant Diagram
