Ball Transfer BSP Bolt Type
Convenient assembly and design suitable for high loads
All components, such as balls, bodies, and caps, can be produced in a variety of materials depending on the intended use.

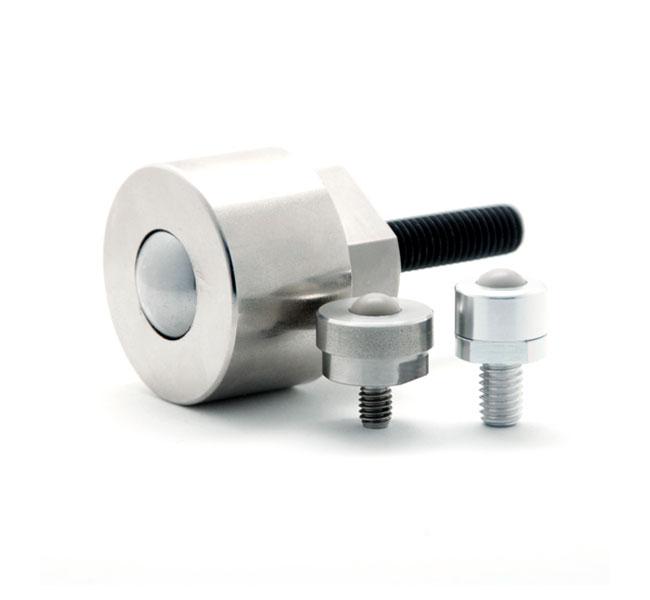

Variant Image

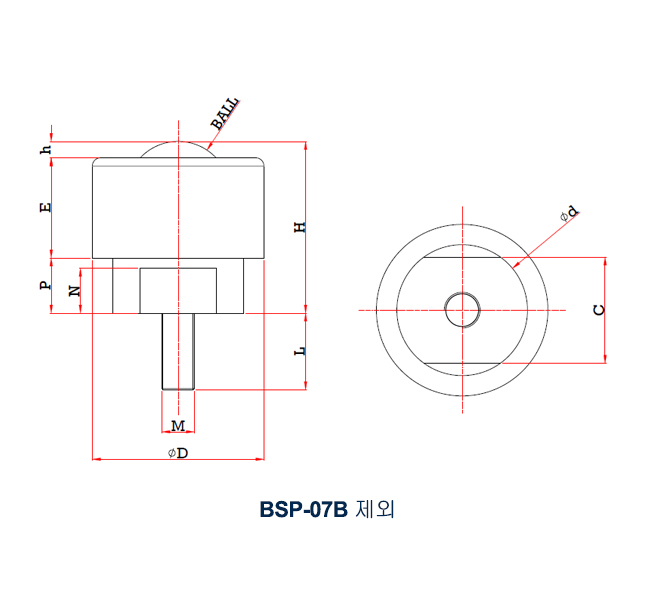

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Ball Size | 1/4" | 1" |
| Housing Diameter | 12 mm | 42 mm |
| Housing Height | 6 mm | 24.3 mm |
| Thread Size | M6 | M10 |
| Stud Length | 7 mm | 30 mm |
| Stationary Load | 7 Kg | 260 Kg |
| Working Load | 3.5 Kg | 130 Kg |
Variant Applications
| Machines / Applications |
|---|
| Material Handling Equipment |
| Air cargo Deck |
| Ball Transfer Tables |
| Industries |
|---|
| Material Handling |
| Aircraft Industry |
Ball Transfer BSP Bolt Type
Convenient assembly and design suitable for high loads All components, such as balls, bodies, and caps, can be produced in a variety of materials depending on the intended use.
Variant Image

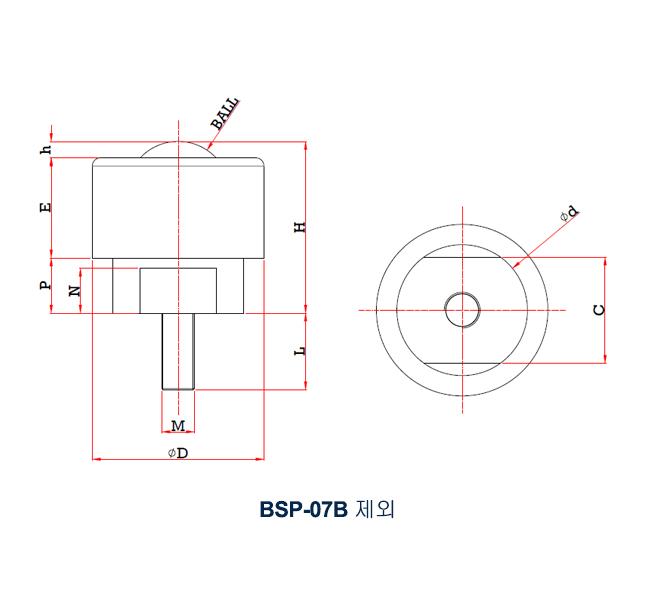

Variant Diagram
