Ball Transfer BS Insert Type
Inserted type, the product most suitable for the environment for high loads and vibrations The bolt type product with the bolt part removed.

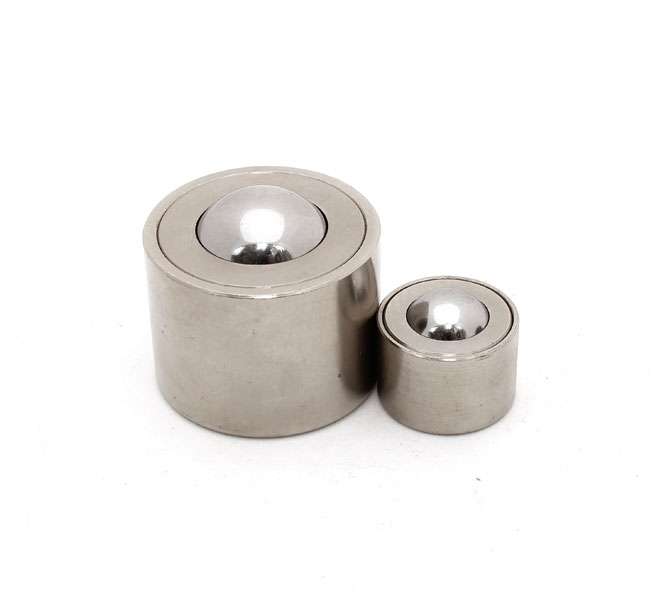

Variant Image

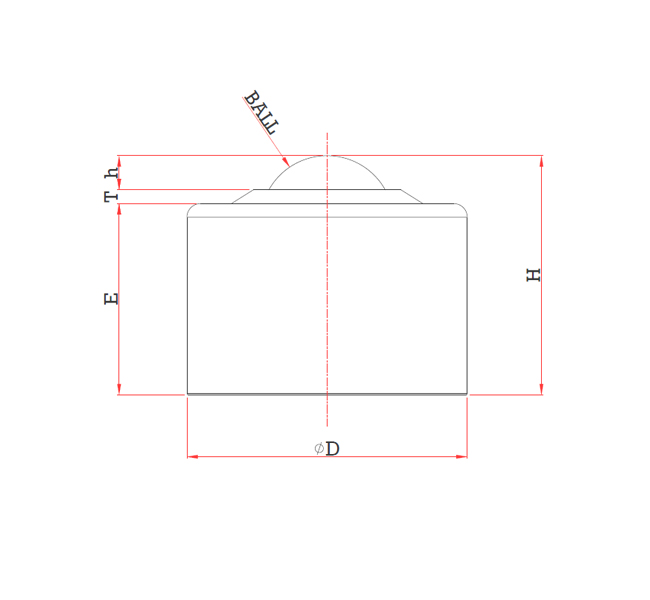

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Ball Size | 1/4" 1/4" | 1" |
| Housing Diameter | 12 mm | 52 mm |
| Overall Height | 9 mm | 45 mm |
| Stationary Load | 20 Kg | 260 Kg |
| Working Load | 10 Kg | 130 Kg |
Variant Applications
| Machines / Applications |
|---|
| Air Cargo Deck |
| Storage |
| Material Handling |
| loading Equipment |
| Industries |
|---|
| Packaging Industries |
| Material Handling |
| Aircraft Industry |
Ball Transfer BS Insert Type
Inserted type, the product most suitable for the environment for high loads and vibrations The bolt type product with the bolt part removed.
Variant Image

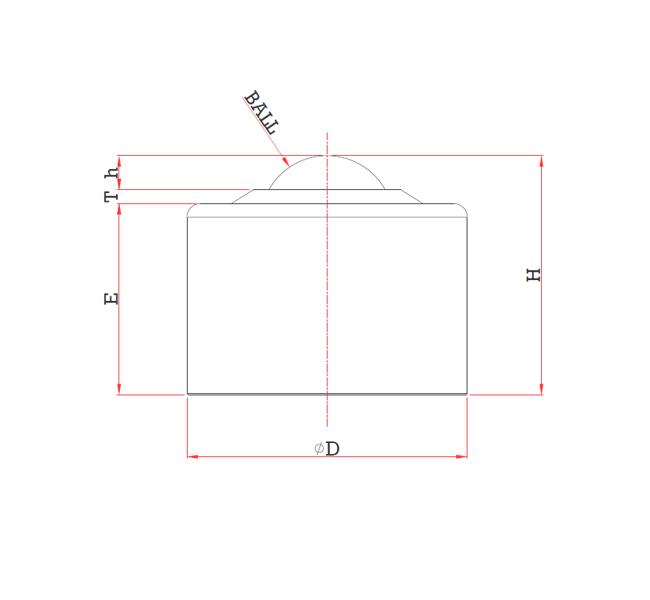

Variant Diagram
