Ball Transfer BSI Type
Insertion type, the most suitable product for environments with high loads and vibrations The most common insertion type product All components, such as balls, bodies, and caps, can be produced in a variety of materials depending on the intended use.

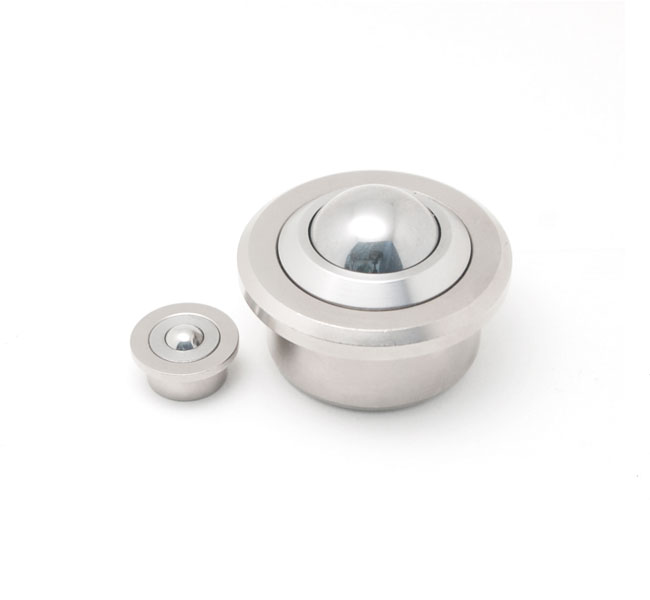

Variant Image

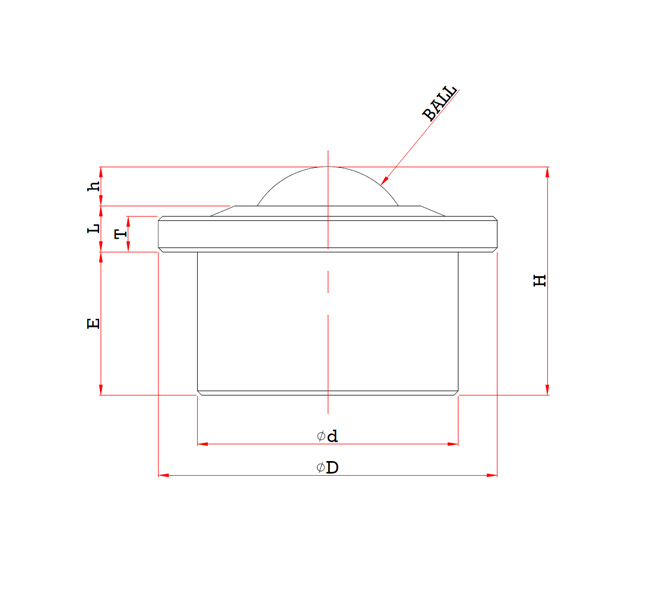

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Ball Size | 5/32" | 1-3/4" |
| Outer Diameter | 9 mm | 74.6 mm |
| Overall Height | 6 mm | 53.5 mm |
| Housing Diameter | 4 mm | 35 mm |
| Stationary Load | 10 Kg | 600 Kg |
| Working Load | 7.5 Kg | 300 Kg |
Variant Applications
| Machines / Applications |
|---|
| Airport baggage sorting systems |
| Steel Pipe transportation |
| Constant Conveyors |
| Industries |
|---|
| Packaging Industries |
| Material Handling |
| Aircraft Industry |
Ball Transfer BSI Type
Insertion type, the most suitable product for environments with high loads and vibrations The most common insertion type product All components, such as balls, bodies, and caps, can be produced in a variety of materials depending on the intended use.

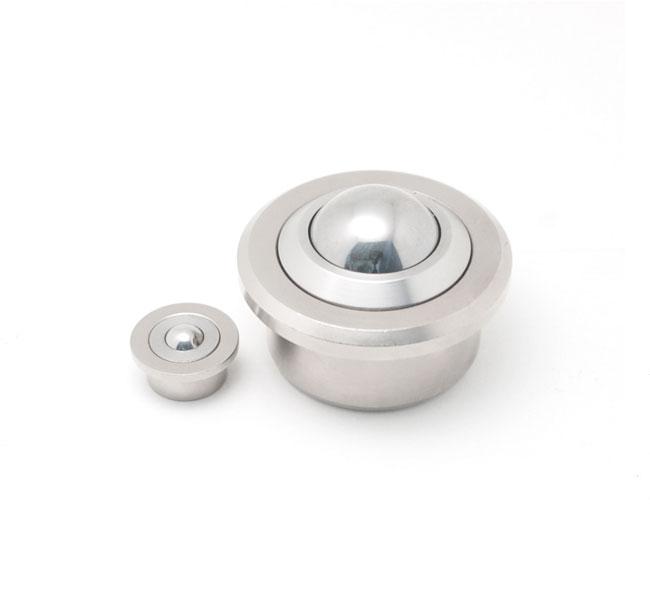

Variant Image
