Ball Transfer BA Flange Type
BA Flange type ball transfer generally made of aluminium and Stainless Steel. These types of ball transfer are designed to be light in weight and are corrosion resistant.

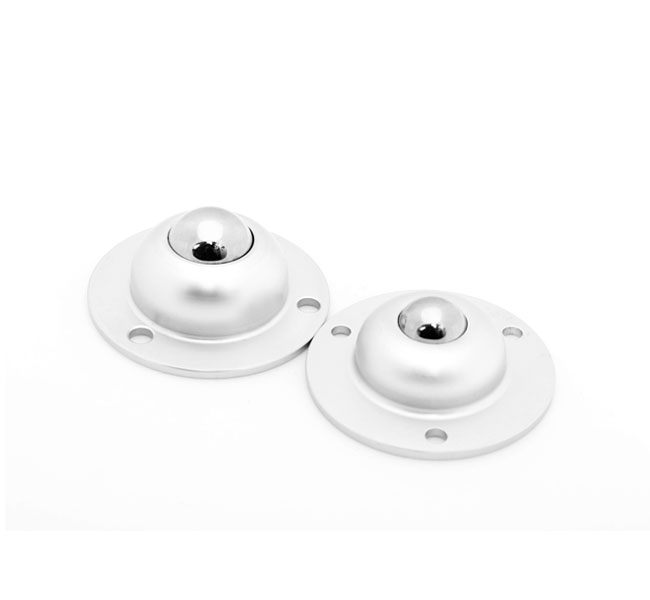

Variant Image

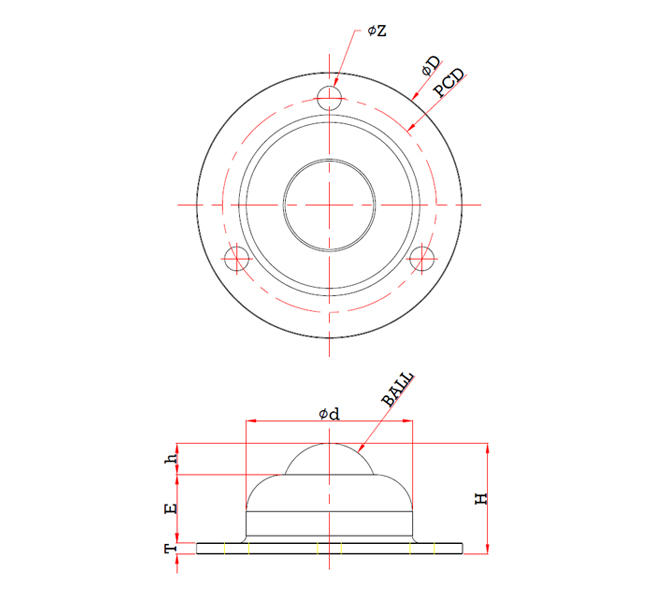

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Ball Size | 3/4" | 1-1/4" |
| Housing Diameter | 40 mm | 60 mm |
| Housing Height | 14.5 mm | 28 mm |
| Flange Housing Height | 67 mm | 95 mm |
| Flange Thickness | 3 mm | 6 mm |
| PCD | 55 mm | 80 mm |
| Overall Height | 24 mm | 47 mm |
| Stationary Load | 50 Kg | 400 Kg |
| Working Load | 25 Kg | 200 Kg |
Variant Applications
| Machines / Applications |
|---|
| Transporting Container |
| Sheet metal working machines |
| Platforms |
| Industries |
|---|
| Packaging Industries |
| Aircraft Industry |
| Material Handling |
Ball Transfer BA Flange Type
BA Flange type ball transfer generally made of aluminium and Stainless Steel. These types of ball transfer are designed to be light in weight and are corrosion resistant.
Variant Image

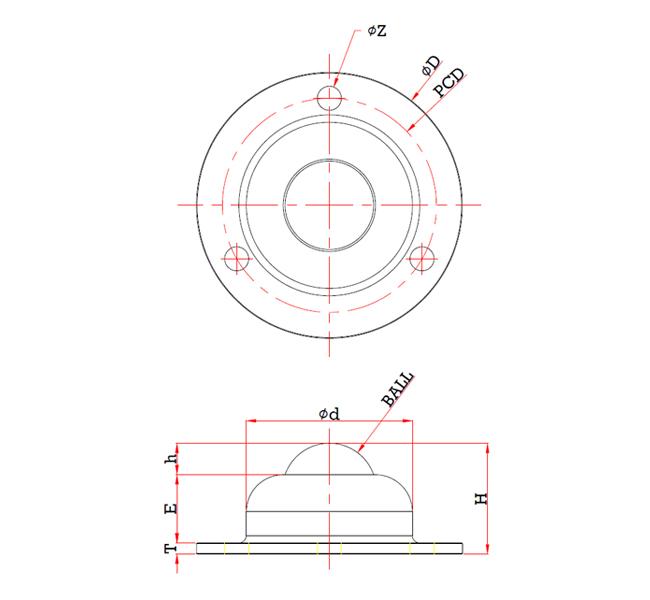

Variant Diagram
