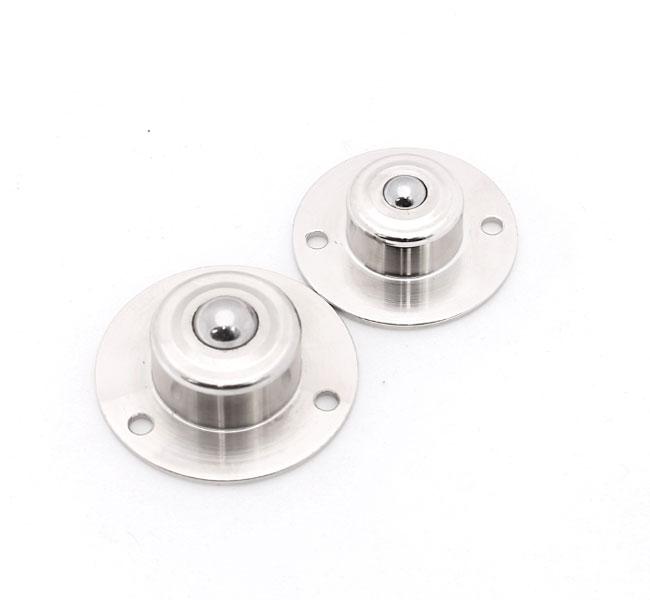

Ball Transfer BS Flange Type
Flanged type for easy installation Design suitable for high loads All components such as balls, bodies, and caps can be produced in various materials depending on the intended use.
Variant Image

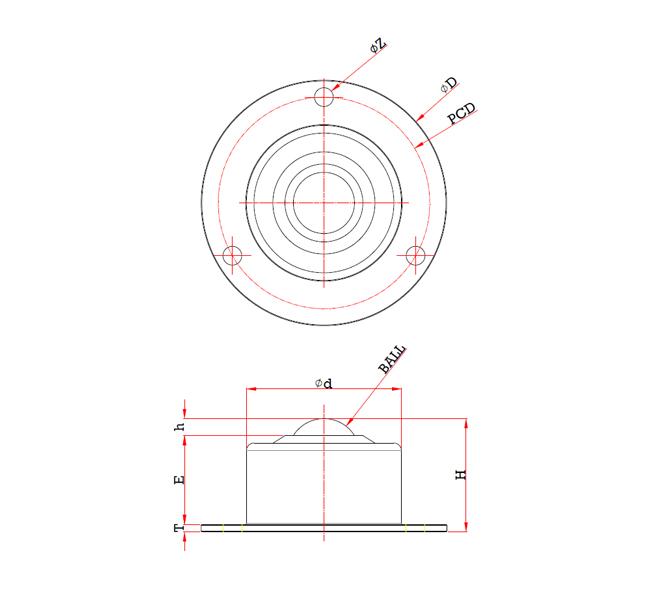

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Ball Size | 3/8" | 2" |
| Housing Diameter | 23 mm | 95 mm |
| Housing Height | 12.6 mm | 56 mm |
| Flange Housing Height | 45 mm | 140 mm |
| Flange Thickness | 1.8 mm | 10 mm |
| PCD | 35 mm | 120mm |
| Overall Height | 17 mm | 80 mm |
| Stationary Load | 70 Kg | 500 Kg |
| Working Load | 35 Kg | 250 Kg |
Variant Applications
| Machines / Applications |
|---|
| Conveyors |
| Air Cargo Application |
| Tool Transfer Stations |
| Assembly lines |
| Industries |
|---|
| Packaging Industries |
| Material Handling |
| Aircraft Industry |
| Food processing |
