Ball Transfer BST Type
Downward-only product Design suitable for high-load environments All components, such as balls, bodies, and caps, can be produced in various materials depending on the operating temperature.

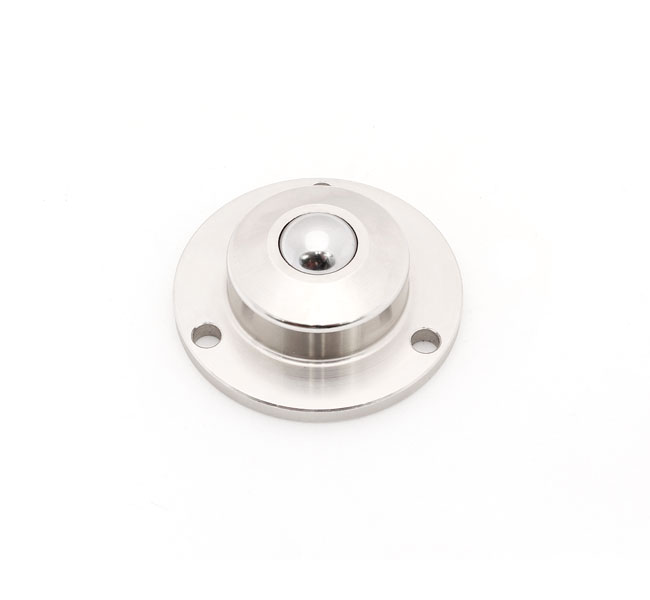

Variant Image

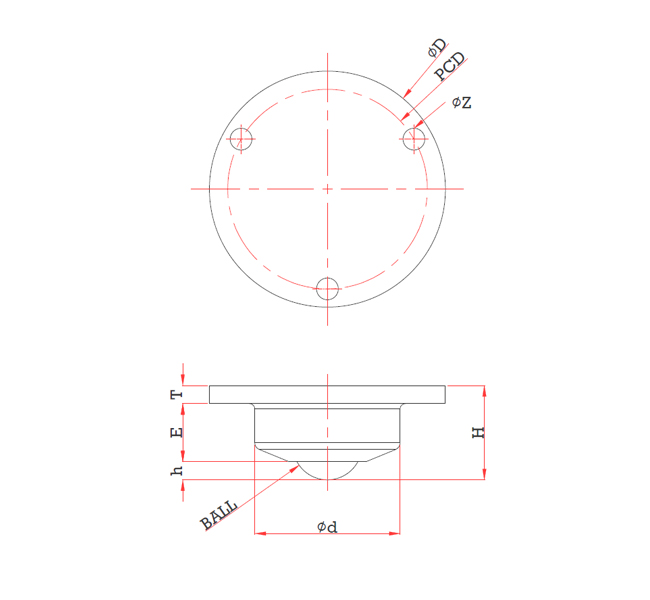

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Ball Size | 3/4" | 1" |
| Housing Diameter | 40 mm | 47 mm |
| Housing Height | 16 mm | 22 mm |
| Flange Diameter | 65 mm | 70 mm |
| Flange Thickness | 5 mm | 6 mm |
| PCD | 55 mm | 58 mm |
| Overall Height | 26 mm | 35 mm |
| Stationary Load | 150 Kg | 200 Kg |
| Working Load | 75 Kg | 100 Kg |
Variant Applications
| Machines / Applications |
|---|
| Assembly Lines |
| Conveyors |
| Storage |
| Material Handling |
| Loading |
| Industries |
|---|
| Packaging Industries |
| Material Handling |
| Aircraft Industry |
Ball Transfer BST Type
Downward-only product Design suitable for high-load environments All components, such as balls, bodies, and caps, can be produced in various materials depending on the operating temperature.
Variant Image

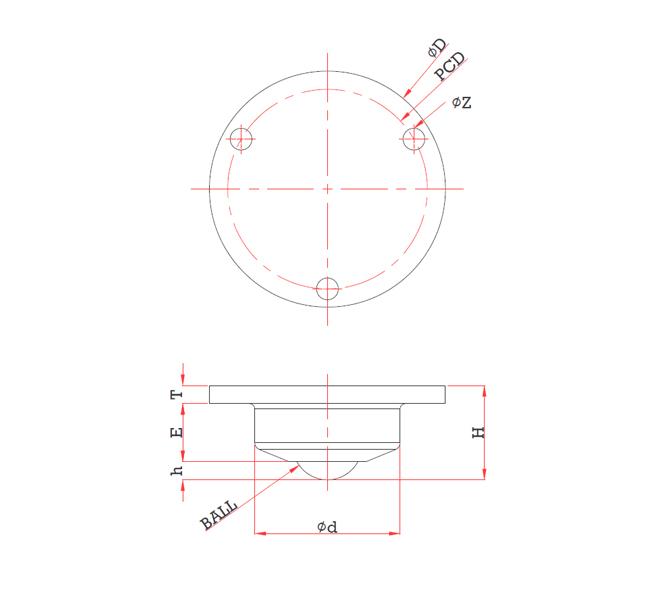

Variant Diagram
