Ball Transfer BPD-F/BPD-I Type
Injection plastic body product, lightweight and inexpensive, suitable for use in a clean environment.

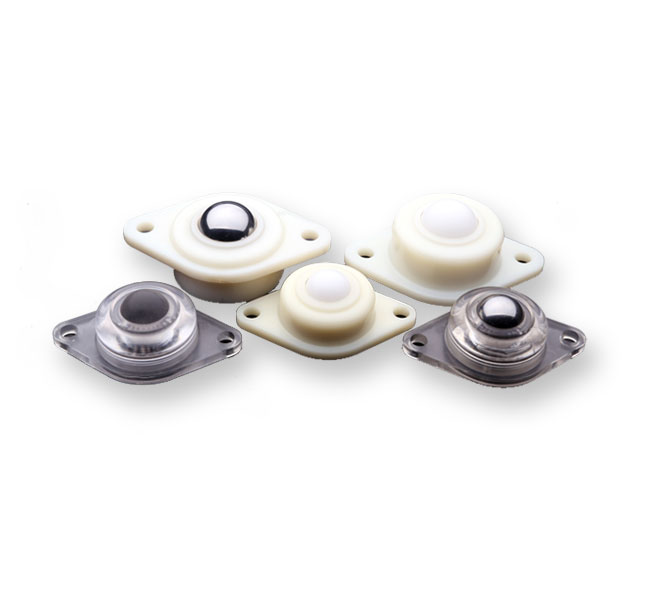

Variant Image

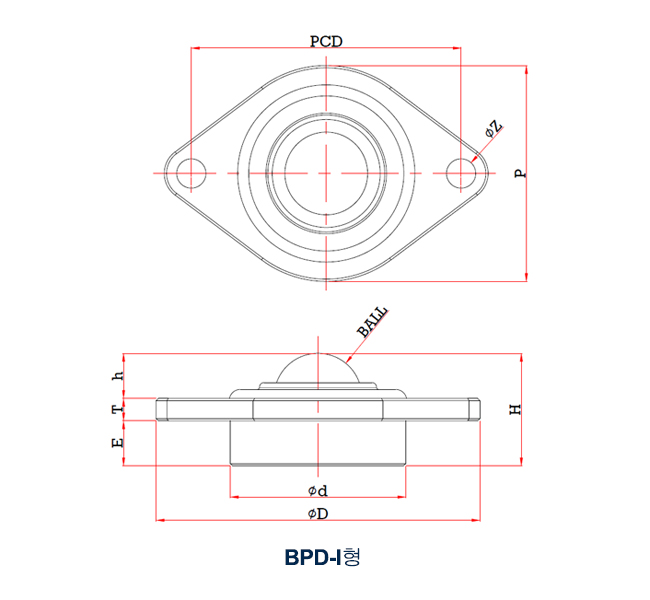

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Ball Size | 3/4" | 3/4" |
| Housing Diameter | 38 mm | 48 mm |
| Housing Height | 14 mm | 19 mm |
| Flange Housing Height | 72 mm | 86 mm |
| Flange Thickness | 5 mm | 5 mm |
| PCD | 60 mm | 68 mm |
| Overall Height | 25 mm | 32 mm |
| Stationary Load | 50 Kg | 70 Kg |
| Working Load | 25 Kg | 35 Kg |
Variant Applications
| Machines / Applications |
|---|
| Conveyors |
| Air Cargo Application |
| Tool Transfer Stations |
| Assembly lines |
| Industries |
|---|
| Packaging Industries |
| Material Handling |
| Aircraft Industry |
| Food processing |
Ball Transfer BPD-F/BPD-I Type
Injection plastic body product, lightweight and inexpensive, suitable for use in a clean environment.
Variant Image

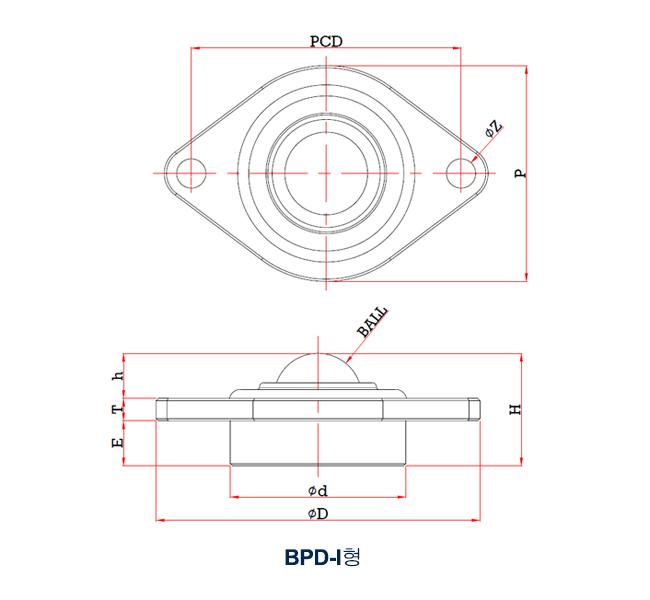

Variant Diagram
