Ball Transfer BPI Type
Made of plastic, light and low load Suitable for use in clean environments. All components, such as balls, bodies, and caps, can be produced with various materials depending on the intended use.

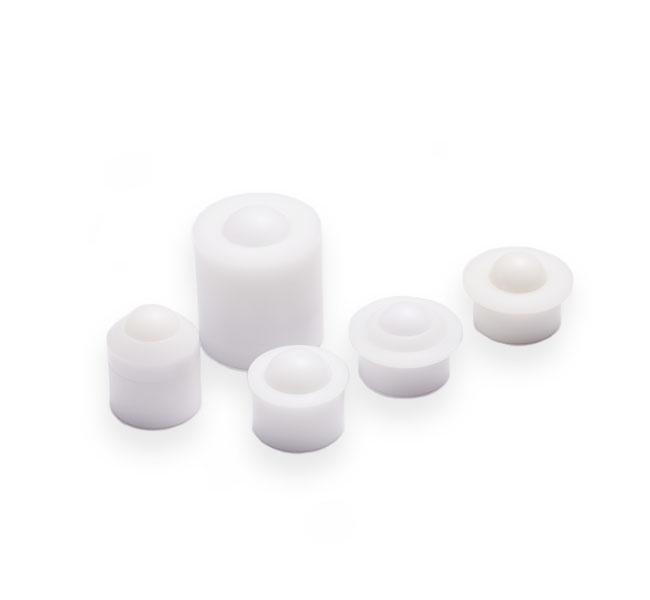

Variant Image

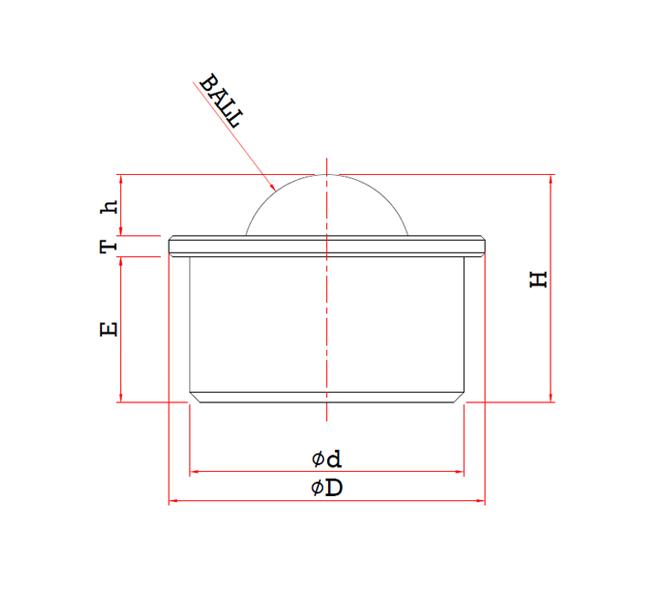

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Ball Size | 5/16 '' | 3/4 '' |
| Housing Diameter | 13 mm | 30 mm |
| Flange Diameter | 15 mm | 39 mm |
| Housing Height | 6.9 mm | 16.5 mm |
| Overall Height | 10.8 mm | 26.3 mm |
| Stationary Load | 0.5 Kg | 3 Kg |
| Working Load | 0.3 Kg | 1.5 Kg |
Variant Applications
| Machines / Applications |
|---|
| Robotics |
| Electronics |
| Automative Racks |
| Industries |
|---|
| Automation Industries |
| Electronics Industries |
