Ball Transfer BC Type
"The tray is produced in two ways, press and cut. The ball and body can also be produced in stainless steel and plastic.

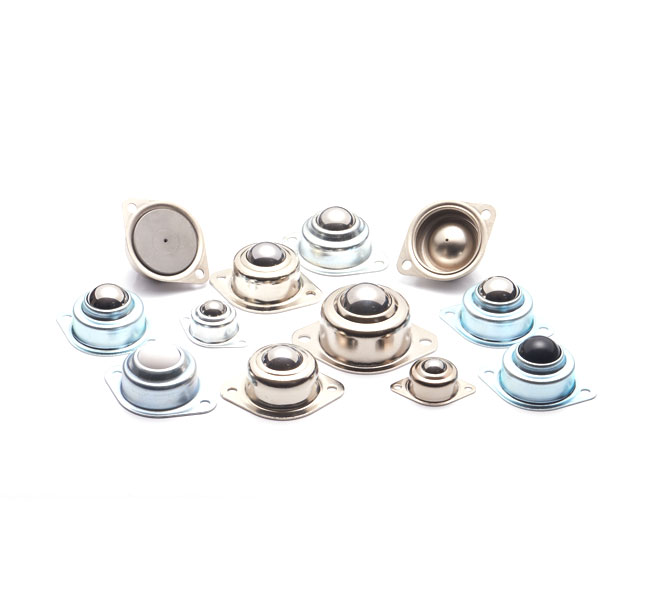

Variant Image
Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Ball Size | 5/8 '' | 1-1/2 '' |
| Housing Diameter | 28 mm | 62.5 mm |
| Housing Height | 15 mm | 34 mm |
| Flange Housing Height | 48 mm | 86 mm |
| Flange Thickness | 1 mm | 2 mm |
| PCD | 40 mm | 70 mm |
| Overall Height | 20 mm | 45 mm |
| Stationary Load | 26 Kg | 120 Kg |
| Working Load | 13 Kg | 100 Kg |
Variant Applications
| Machines / Applications |
|---|
| Conveyors |
| Air Cargo Application |
| Tool Transfer Stations |
| Assembly lines |
| Industries |
|---|
| Packaging Industries |
| Material Handling |
| Aircraft Industry |
| Food processing |
