ST Miniature Stroke Slide series
CPC ST Miniature Stroke Slide series is designed with two rows of balls. It features high load and high moment capacity, high running accuracy and smoothness, easy mounting etc.

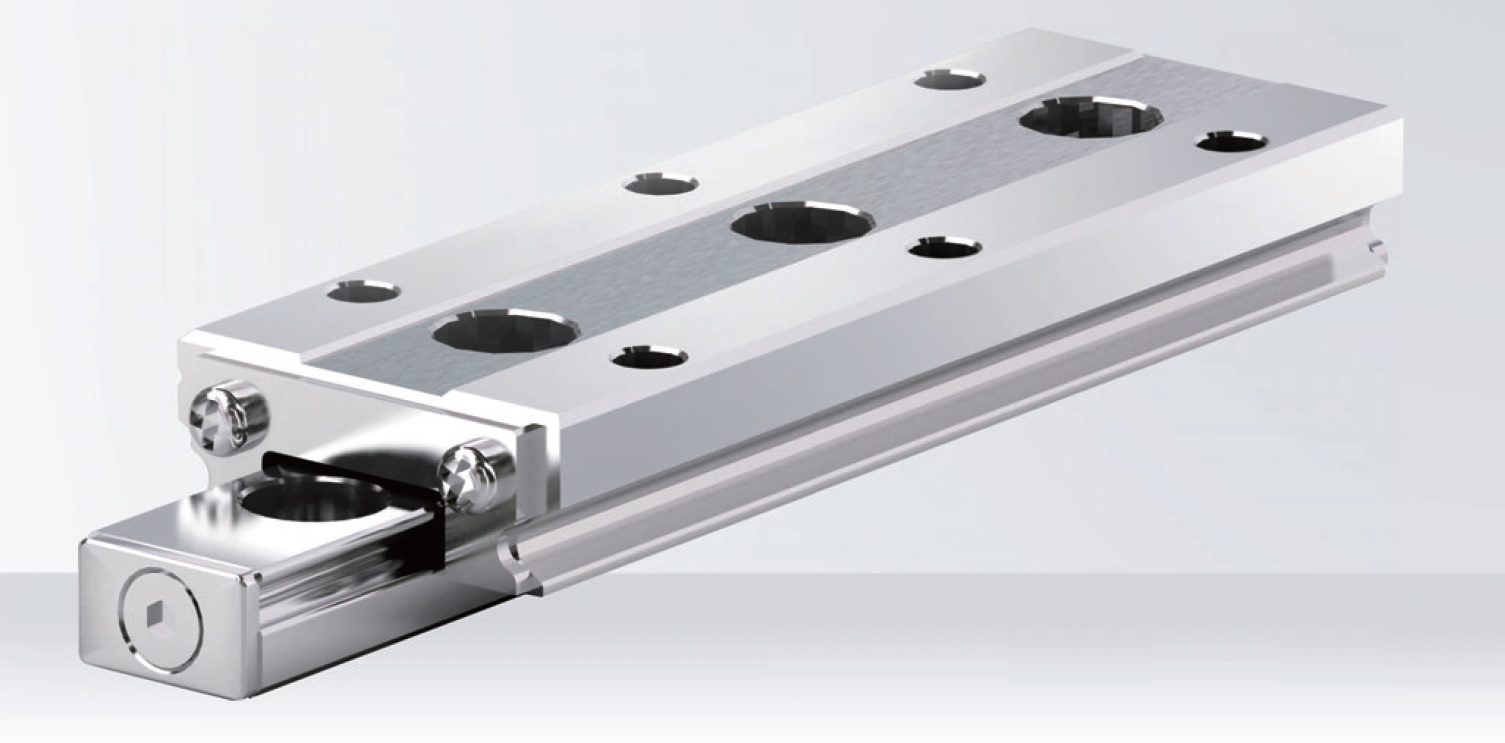

Variant Image

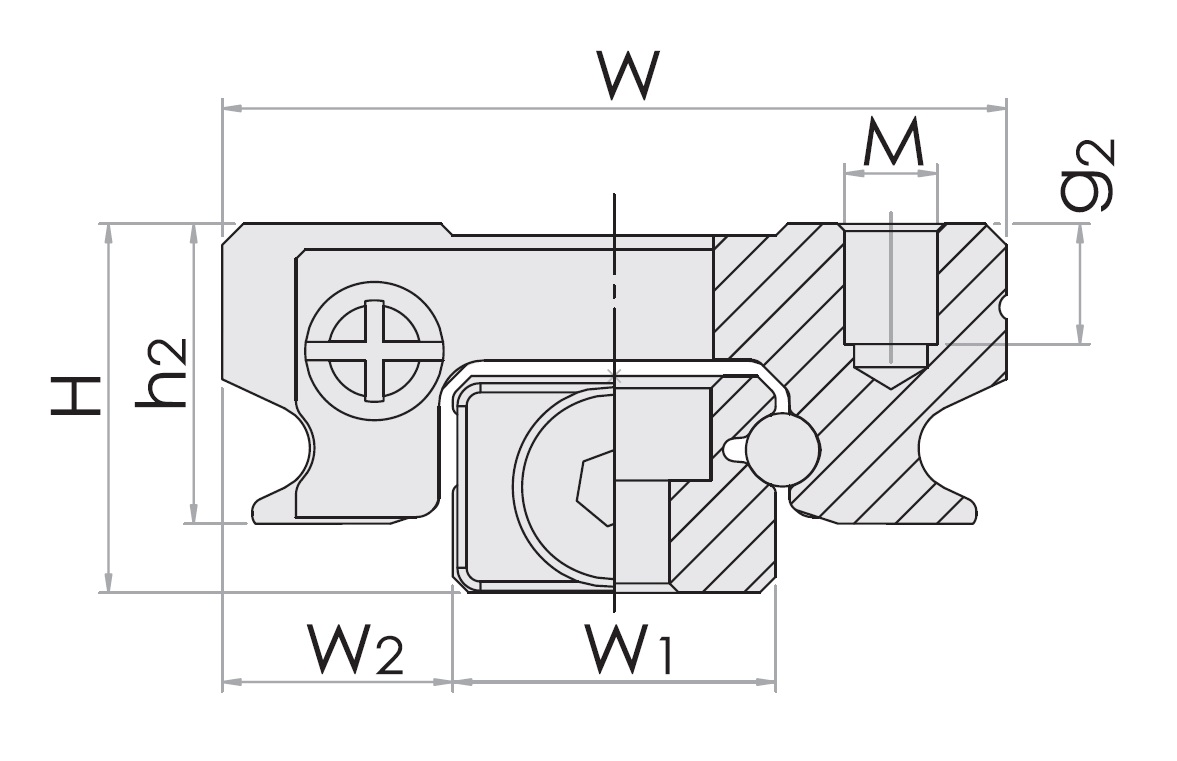

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Rail Width | 7 mm | 12 mm |
| Assembly Height | 8 mm | 13 mm |
| Dynamic Load | 910 N | 4.05 KN |
| Static Load | 1.58 KN | 8.67 KN |
Variant Applications
| Machines / Applications |
|---|
| CNC Machine |
| Industries |
|---|
| Maintenance and Inspection |
