RV
The RV original series is a bearing less model that offers high precision and high torque right angle gearheads that encompasses the RV-E and RV-C gearheads. They are known for their compact size, high efficiency, high torque capacity, and low backlash, which helps to provide high precision and accuracy in motion control applications.

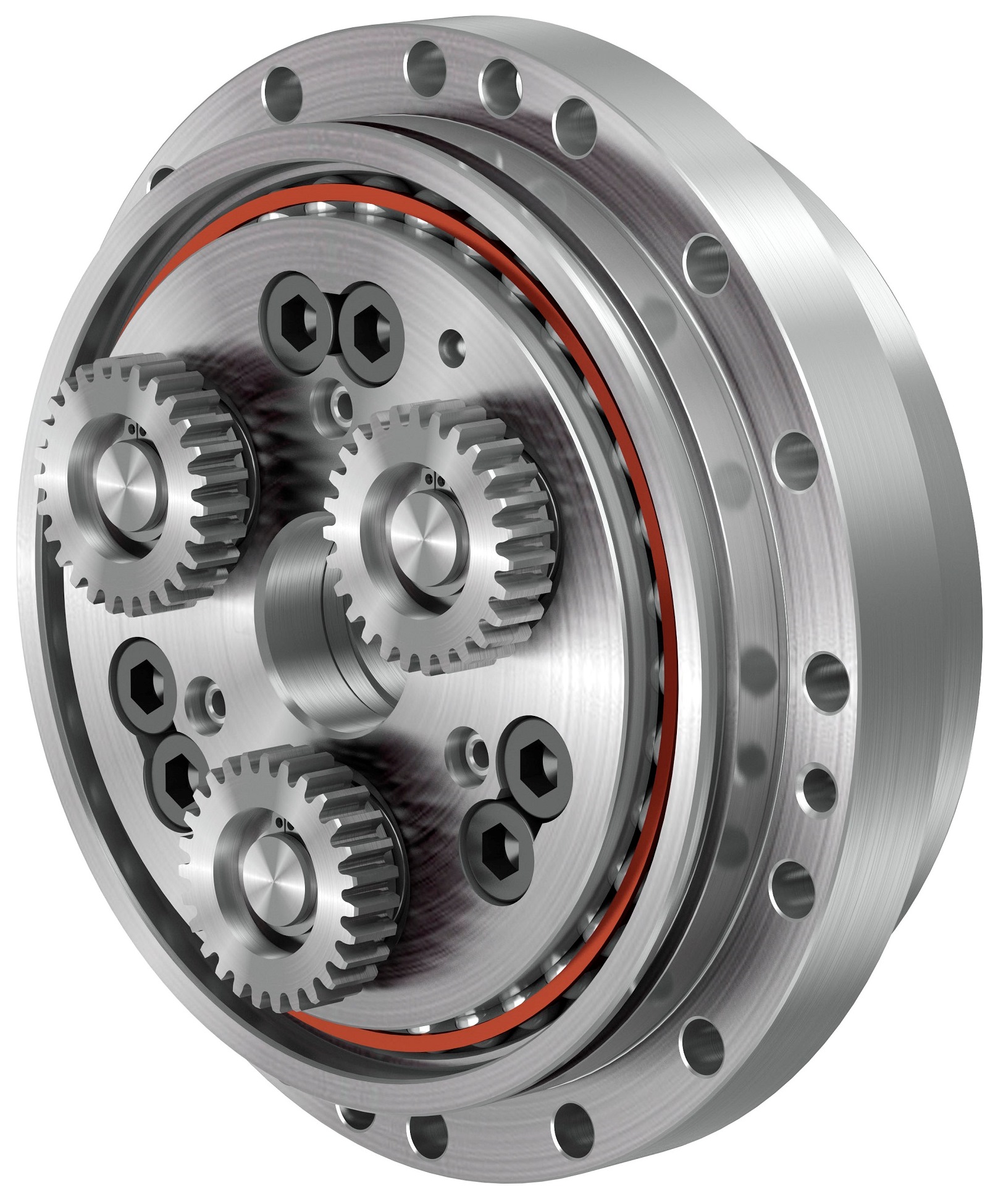

Variant Image
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Standard Ratio | 57 | 192.42 |
| Rated Torque | 137 Nm | 8820 Nm |
| Rated Output speed | - | 15 rpm |
| Backlash | - | 1 arc.min |
Variant Applications
| Machines / Applications |
|---|
| Robot swing axis |
| Industries |
|---|
| Steel |
| Tyre |
| Material Handling |
| Automobile |
| Aviation |
